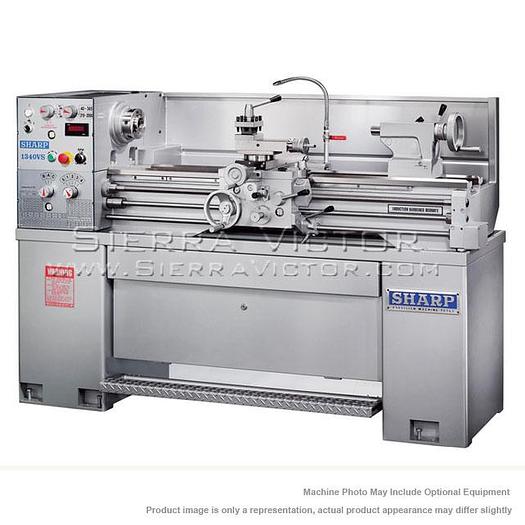

SHARP Geared Head Precision Lathe 1340VS
SHARP Geared Head Precision Lathe 1340VS
Contact us for price
Description
Please note: many products ship straight from manufacturer SHARP Geared Head Precision Lathe 1340VS Hardened and ground gears in headstock for long lasting wear. Induction hardened and ground bed ways for smooth longitudinal movements. Spindle supported by 2 high precision tapered roller bearings. Carriage equipped with overload clutch to protect gears and screws. Quick change totally enclosed gearbox offers wide range of threads. Oil bath lube system keeps gears and shafts well lubricated. Jog button for easy engagement of gears and inching of spindle rotation. Digital Variable Speed in VS and V models allow easy change of spindle speed by dialing, it also operates on 3 phase or single phase power supply. Gapped bed allow large work piece to be chucked when needed. STANDARD EQUIPMENT: Removable gap Steady rest Coolant system Full length splash guard 4 way tool post Tailstock Back plate Foot brake Thread dial Center sleeves Dead centers Tool kit
Specifications
| Manufacturer | Sharp |
| Model | 1340VS |
| Condition | New |
| Stock Number | 1340VS |
| Swing over cross slide | 8-5/16" |
| Swing over gap | 18-1/2" |
| Width of bed | 7-1/2" |
| Distance between centers | 40" |
| Spindle bore | 1-9/16" |
| Spindle speeds (rpm) | 40 - 2,000 [vari] |
| Taper of spindle bore | MT #5 |
| Cross feed - in. / rev (40) | 0.0005 - 0.015" |
| Inch threads [tpi] | 2 - 56 (39) |
| Metric threads | 0.5 – 12 (42) mm |
| Leadscrew (pitch, diameter) | 8 tpi, 1" |
| Apron width | 11" |
| Cross slide width | 4.5" |
| Cross slide travel | 6-3/4" |
| Compound rest travel | 3-1/2" |
| Compound width x length | 3" x 7-1/2" |
| Bed width | 7-1/2" |
| Quill diameter | 1-9/16" |
| Quill taper | MT #3 |
| Motor electric phase | single or 3 phase |
| Net weight (approx.) | 1,550 lbs. |
