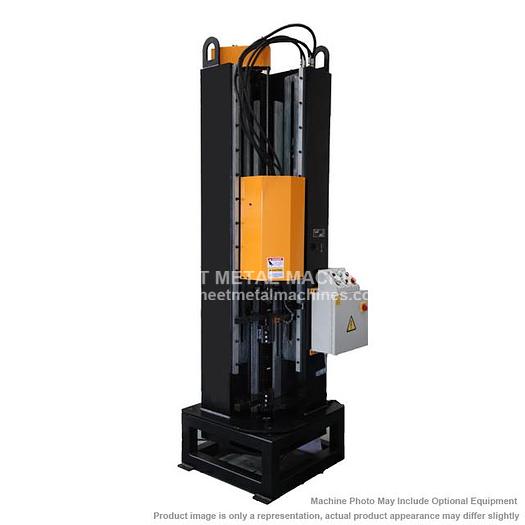

JAG Seam Closer

JAG Seam Closer

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

Ships direct from the factory. Lead time 6 to 8 weeks.

JAG 16 ga. Seam Closer The quiet, automated way to close seams in less than six seconds! Key features and benefits: Eliminate hammering to close ductwork seams. Greatly reduce noise levels and speed up duct seam closing in your shop or at the job site. Seam Closer will also close both insulated and reinforced ductwork. Seams from top and bottom to the middle to avoid run out and incomplete seaming.

ITEM: 16 ga. Seam Closer MANUFACTURER: JAG MODEL: SEAM CLOSER

Specifications

ManufacturerJAG
ModelSeam Closer
ConditionNew
Stock NumberSEAM CLOSER
Capacity16 – 24 gauge (0.70 – 1.61 mm)
Duct length1-3/4 – 6-1/2 feet (530 – 1980 mm) of material
Duct connectionsSlip & drive, raw, TDC/F and slip-on flanges
Duct materialGalvanized mild steel, stainless steel and aluminum
HydraulicsSelf-contained 25 gallons (95 liters)
Motor2 HP (1.5 kw) – 220 volts, 60 cycle, three phase, AC
Dimensions35”L x 35W” x 111”H (890 x 890 x 2820 mm)
WeightMachine – 2,230 lbs. (1014 kg) Hydraulic Reservoir – 330 lbs. (150 kg)
