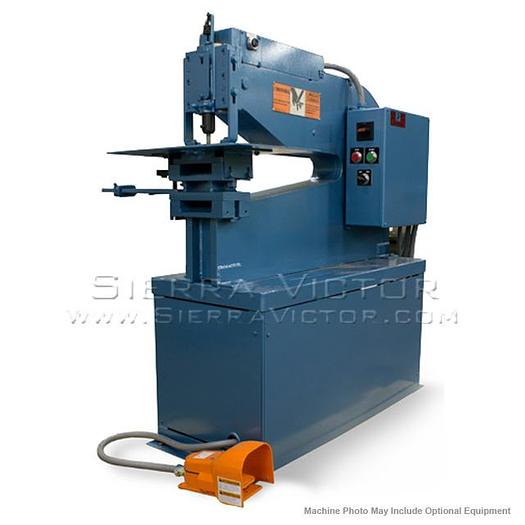

ROPER WHITNEY Deep Throat Hydraulic Press 230V NO. 134

ROPER WHITNEY Deep Throat Hydraulic Press 230V NO. 134

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Deep Throat Hydraulic Press 230V NO. 134 he No. 134 hydraulic punch economically upgrades your production capabilities. For convenient set-up, operator efficiency and increased productivity this punch has a control system that allows the operator to choose jog (for set-up) or run (for production) simply and conveniently. It also has adjustable stroke length and full “override” capability. Includes standard equipment: Side gauge, depth gauge, one F8 and F28 punch holder, one No. 20 and N. 40 die adapter, H2 3/4 die shoe, one 1/2 round punch and die set, one set of stripper arms, A7 stripper plate and a gauge work table. MADE IN USA STANDARD EQUIPMENT: PART # ITEM — Side Gauge — Depth Gauge 136122808 F8 Punch Holder - 2 lbs. 136132828 F28 Puch Holder - 2 lbs. 136313020 No.20 Die Adapter - 2 lbs. 136323040 No.40 Die Adapter - 1 lb. 233450001 H 2-3/4" Die Shoe - 8 lbs. — 1/2" Round Punch and Die ( 1 )

Specifications

ManufacturerRoper Whitney
ModelNO.134
ConditionNew
Stock Number133310134
Catalog no.133310134
Maximum rated capacity: *8 Tons
Tonnage chartSEE ATTACHMENTS TAB
Throat depth24"
Throat height at ram10"
Length of stroke1"
Ram adjustment3/4"
Diameter of punch shank hole in ram1"
Depth of punch shank hole in ram1-1/4"
Slug clearance3" x 5"
Bed plate holes ( c to c )6-3/4"
Electrics230V, 3Ph, 60Hz
Shipping weight900 lbs.
