ROPER WHITNEY Slip Roll NO. 0381

No longer available
ROPER WHITNEY Slip Roll NO. 0381
$1,530
Description
Please note: many products ship straight from manufacturer ROPER WHITNEY 3.5' (42") x 24 ga. Slip Roll NO. 0381

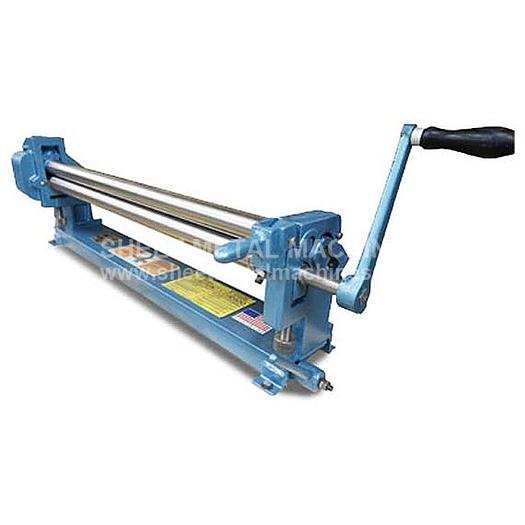

PART# 167074381 The No. 0381 manual roll has 2″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16″, 1/4″ and 5/16″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 42″ with a thickness capacity of 24 gauge mild steel. MADE IN USA OPTIONAL ITEMS: 667002916 - NO. 0381 Heavy Duty Welded Floor Mount Stand - 130 lbs.: $390.00
Specifications
Manufacturer | Roper Whitney |
Model | NO. 0381 |
Condition | New |
Stock Number | 167074381 |
Capacity - mild steel ( ga. ) | 24 |
Max. forming length | 42" |
Roll diameter | 2" |
Minimum forming radius | 1" |
Wiring grooves | 3/16", 1/4", 5/16" (5, 6.5, 8mm) |
Dimensions | 61" x 11" x 15" |
Shipping weight | 265 lbs. |
