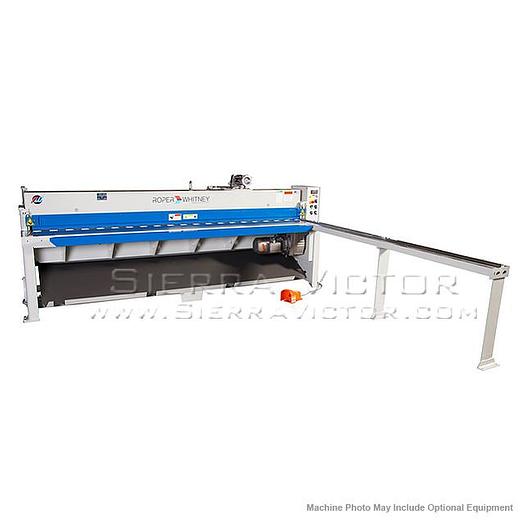

ROPER WHITNEY Mechanical Shear with Pro Package-FC 10M14FC

ROPER WHITNEY Mechanical Shear with Pro Package-FC 10M14FC

$33,836

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Mechanical Shear with Pro Package-FC 10M14FC (Front Return Sheet Support System with Movable Material Cart) ITEM: 10' (124-1/4") x 14 ga. Mechanical Shear with Pro Package-FC MANUFACTURER: ROPER WHITNEY MODEL: 10M14FC PART# 172301014 Available in 3 models with varying gauge capabilities and cutting length options, M series shears offer low power consumption, superior cut quality and a fast, highly accurate power backgauge. These machines accompany our coil processing and cut to length solutions very well. Fast, highly accurate back gauge Hand wheel allows precise adjustments Continuous model offers speeds up to 35 cuts per minute Move the back gauge out of the way to square up irregular shaped scrap material Front gauge lets you quickly square and cut pieces to length Available rolling collection tray lets you quickly move material around the shop

Specifications

ManufacturerRoper Whitney
Model10M14FC
ConditionNew
Stock Number10M14FC
Catalog no.172301014
Maximum shearing capacity, mild steel*14 ga.
Maximum shearing capacity, stainless steel**18 ga.
Maximum cutting length124.25"
Back gauge range30"
Strokes per minute35
Hold down systemSolid bar with Non-Marring Urethane Insert
Drive motor5 HP, 230/460V, 3 phase, 60 Hz
Back gauge motor1/4 HP, 230/460V, 3 phase, 60 Hz
Overall dimensions, less gauges (lxwxh)141" x 27" x 52"
Floor space, gauges in position141" x 64" x 52"
Shipping weight5,850 lbs.
