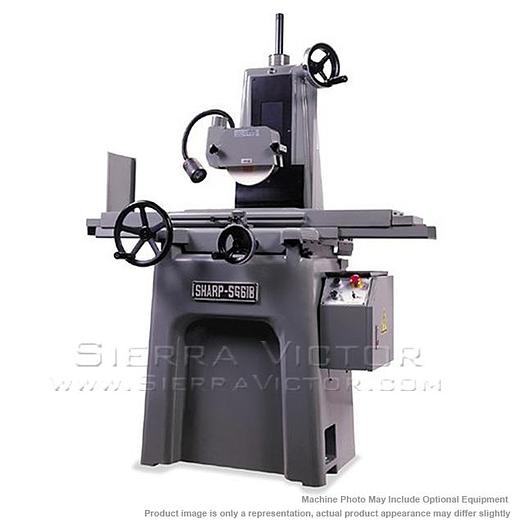

SHARP Manual Surface Grinder SG-618

SHARP Manual Surface Grinder SG-618

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer SHARP 6" x 18" Manual Surface Grinder SG-618 1.5 Motor Two “V” way for extra accuracy in cross travel Both ways are hand-scraped and covered with Turcite B coating Accurate slot grinding achieved using saddle locking system Double-nut backlash eliminator Cross slide and column screws are hardened and ground to a 70 Rockwell C Hardness Wire rope driven table Main spindle run-out within 0.0001” Automatic lubrication system STANDARD EQUIPMENT: Grinding Wheel (8” x 0.63” x 1.25”) Auto Lube System Wheel Adapter/Flange Wheel Balancing Arbor Work Light Diamond Dresser Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint Wired 220v or 440v. Please specify ITEM: 6" x 18" Manual Surface Grinder MANUFACTURER: SHARP MODEL: SG-618 SEE ATTACHMENTS TAB FOR PRICES PART # ITEM KMT-1545B

Specifications

ManufacturerSharp
ModelSG-618
ConditionNew
Stock NumberSG-618
Maximum grinding width6.3"
Max distance: table to spindle center16"
Maximum longitudinal travel18.9"
Maximum cross travel7"
Hand feed per revolution (cross)0.2"
Graduation of hand wheel0.0001"
Hand feed per revolution (vertical)0.05"
Spindle speed3,600 RPM
Grinding wheel outside diameter8"
Grinding wheel bore1.25"
Grinding wheel width0.63"
Net weight (approximately)1,510 lbs.
