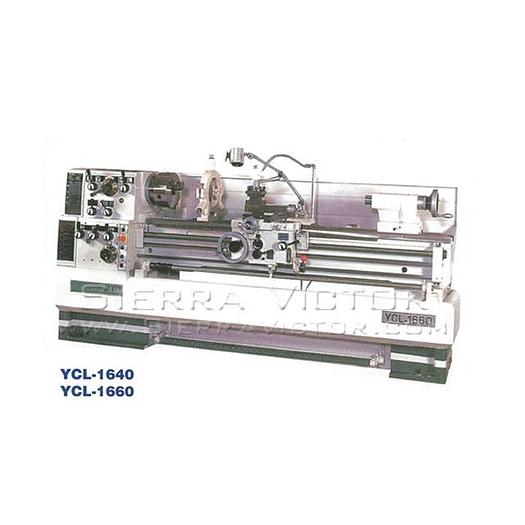

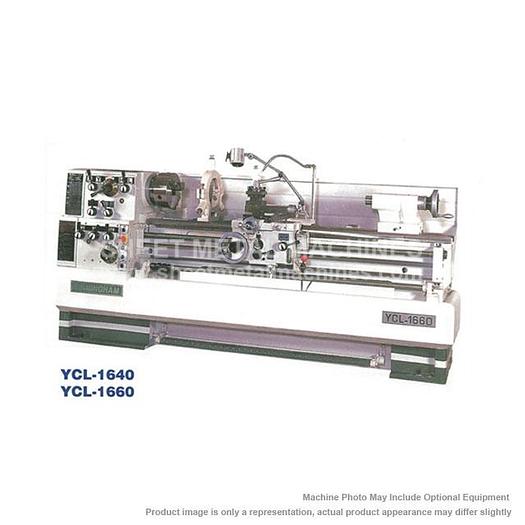

BIRMINGHAM Precision Gap Bed Lathe YCL-1660

BIRMINGHAM Precision Gap Bed Lathe YCL-1660

$12,777

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BIRMINGHAM Precision Gap Bed Lathe YCL-1660 16" x 60" ITEM: 16" x 60" Precision Gap Bed Lathe MANUFACTURER: BIRMINGHAM MODEL: YCL-1660 7-1/2 HP Motor One-piece cast iron base No change gears required 12 Speeds from 25 - 2,000 RPM D1-6 Spindle with 2-9/32" bore 60 kinds of inch threads from 112-2 TPI Main spindle hardened & precision ground Bed made of fine grain high tensile cast iron Bedways induction hardened & precision ground All gears & shafts hardened & precision ground Main spindle supported at 3-point by precisions bearings STANDARD EQUIPMENT: 3 JAW CHUCK 4 JAW CHUCK FACE PLATE STEADY REST W/ ROLLER JAWS FOLLOW REST GAP 4 WAY TOOL POST THREADING CHASING DIAL ( 2 ) DEAD CENTERS REDUCING SLEEVE FULL LENGTH SPLASH GUARD ONE PIECE CAST IRON BASE FOOT BRAKE HALOGEN WORK LIGHT COOLANT SYSTEM LEVELING PADS 4 POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE STOP TOOL BOX TAPER TURN ATTACHMENT

Specifications

ManufacturerBirmingham
ModelYCL-1660
ConditionNew
Stock NumberYCL-1660
Max. length of workpiece60"
Max. swing over carriage8-13/16"
Max. swing in gap25-3/16"
Effective length in gap9-1/2"
Width of bed11-13/16"
Diameter of spindle thru bore2-9/32"
Taper of spindle centerMT #6 (sleeve #6 / #4)
Spindle speeds25 - 2000 rpm, 12 steps
Cross feeds.00033" - .01837" / rev., 42 kinds
Metric threads0.1 - 14mm, 41 kinds
Inch threads112 - 2 TPI, 60 kinds
Module threads0.1 - 7mm, 34 kinds
Diametral pitch threads112 - 4 DP, 50 kinds
Max. travel of top slide5"
Taper of tailstock quill centerMT #4
Max. travel of tailstock quill4-13/16"
Power of coolant pump1/8 HP
Net weight, approx (lbs.)5,100
