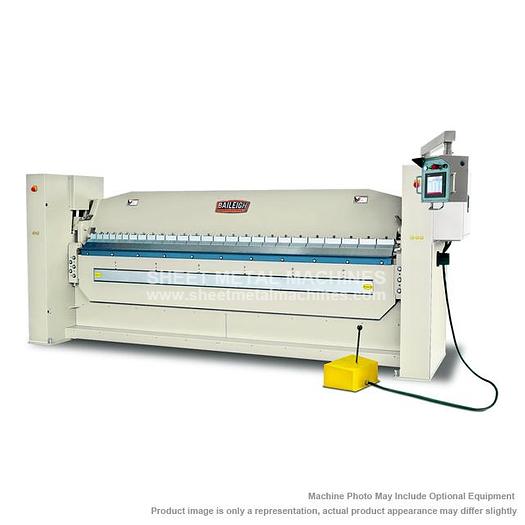

BAILEIGH Hydraulic Box and Pan Brake BB-12010H-NC

BAILEIGH Hydraulic Box and Pan Brake BB-12010H-NC


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Hydraulic Box and Pan Brake BB-12010H-NC

Designed for production-oriented shops, this numerically-controlled brake lets you program the bend degree for efficient runs. Its steel frame prevents deformation on heavy gauges.

  • 10 gauge mild steel and 12 gauge stainless steel maximum capacity.
  • Adjusts to the thickness of the material you’re bending.
  • You can dial in a programmed bend in manual or semi-automatic mode.
  • Degree adjustment auto-stop ensures exact repeatability.
  • Easy-to-usemachine does all of the following:
  • Clamps the material at the fingers,
  • Lifts the leaf to the pre-programmed bend,
  • Opens the beam when the bend is complete.
  • Operate the machine through the the foot pedal controls.
  • Comes with 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", 6 of 6") that you can adjust for different box and pan applications.
  • Industrial-grade hydraulics drive the bend leaf.
  • Greaseable joints and filtered hydraulic system give this metal brake a long lifespan of use.
  • Numerically-controlled back gauge lets you control the distance between bends efficiently and reduces human error.
  • Variable bending speed and clamping pressure adjustment let you fit a given material and project.
  • Top-of-the-line electrical components keep the machine accurate and reliable over years of production.
  • Electro-welded steel construction, with massive truss rods for additional stability, minimizes twisting and misalignment when bending at full capacity.
  • Extra-rigid base design supports the weight of heavier materials.
  • Baileigh covers this hydraulic sheet metal brake with a 1-year parts warranty.
  • Includes lifetime technical support by phone. Whenever you need machine help or project advice, you can call up our team of experienced reps.
  • We keep most replacement parts in stock for delay-free deliveries.
  • Made in Taiwan


ManufacturerBaileigh Industrial
Stock NumberBB-12010H-NC
Capacity length120"
Capacity thickness (ss)10 ga (12 ga)
Bend angle0 – 135 deg.
Finger size3" / 4" / 5" / 6"
Box depth6"
Motor5 hp
Power requirement220V / 3-phase
Shipping dimensions (l/w/h)176" x 79" x 89"
Shipping weight7,700 lbs.
