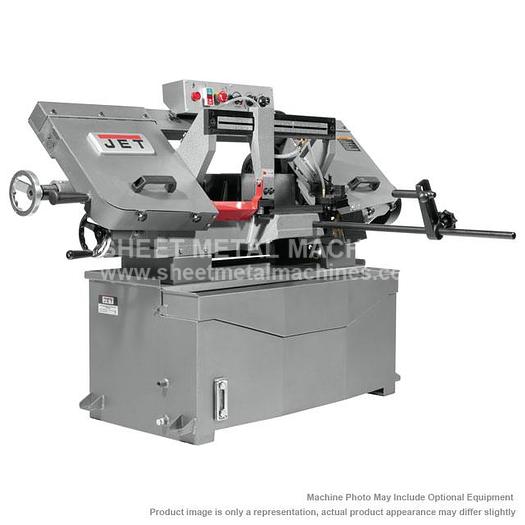

Please note: many products ship straight from manufacturer JET HBS-916EVS 9" x 16" EVS Horizontal Bandsaw 424469 DURABILITY: Carbide blade guides feature parallel double-row ball bearing support Large hand wheel and built-in gauge provides easy blade tensioning Built-in, self propelled blade brush extends blade life Coolant system 1" Bi-Metal blade

SAFETY: Blade is fully guarded, regardless of blade guide position Automatic shut-off after cut Following strict guidelines and electrical requirements, these JET bandsaws are CSA/US certified. Fully adjustable hydraulic downfeed with separate on/off control valve

EASE OF USE: Electronic Variable Speed blade control - Simplifies use and drastically improves efficiency. Redesigned oversized chip catch basin is 39% larger than previous models to minimizes overspray and allows for quick cleanup. Inverter controlled 230-volt, 3 Phase motors operate more efficiently than comparable 1 phase. Quick-positioning vise with fully adjustable jaws, swivels to 45° Coolant is distributed through the blade guide Adjustable material stop


Stock Number424469
45°9" x 6-1/8"
Cutting Capacity (W x D) (in.)9 x 16
Vise Swivels (Deg.)45°
Blade Speeds (SFPM)(EVS ) 82-330
Motor (HP)1-1/2
Prewired (V.)115
Amperage Draw @ 115V 1Ph5
Height of bed to floor23-1/2
Blade Length (in.)119-1/2
Blade Size (in.)1 x .035 x 119-1/2
Blade Wheel Diameter (in.)13
Shipping Dimensions (L x W x H) (in.)67 x 25 x 46-1/4
Overall Assembled (Bow Raised) (L x W x H) (in.)65 x 25 x 67
Net Weight (lbs.)726
Gross Weight (lbs.)818
