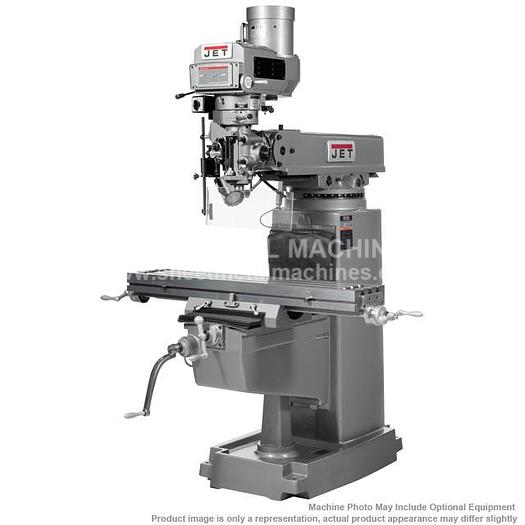

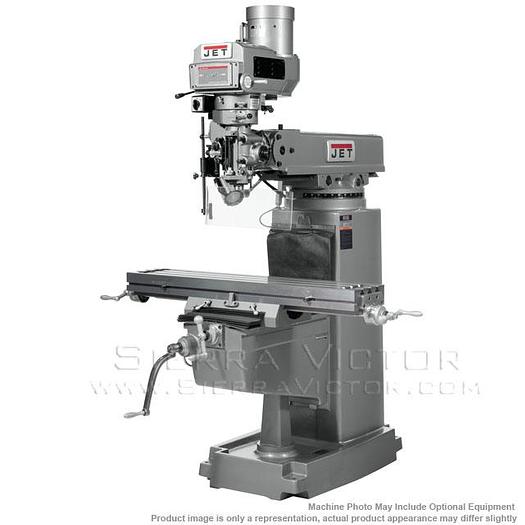

JET JTM-1050VS2 Variable Speed Knee Mill 691050

JET JTM-1050VS2 Variable Speed Knee Mill 691050

$10,899

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JTM-1050VS2 10" x 50" Variable Speed Knee Mill 691050 DURABILITY: JET proprietary certified Meehanite castings Hardened and ground table capable of supporting 840 pounds Turcite B on X and Y axis Chrome lead screws on X and Y axis High precision Class 7 spindle bearing One piece quill pinion and shaft Chrome lead screws on X and Y axis SAFETY: Large Spindle guard Three stage power downfeed with automatic stop Heavy-duty spindle break EASE OF USE: LED work light Precision bored and honed milling head Internal coolant tank built into base for use with coolant system (coolant pump not included) One shot lubrication system Easy level feet ITEM: 10" x 50" Variable Speed Knee Mill MANUFACTURER: JET MODEL: JTM-1050VS2 PART# 691050

Specifications

ManufacturerJet
ModelJTM-1050VS2
ConditionNew
Stock Number691050
Stock #691050
Motor (HP)3 HP, 230/460V, 3Ph
Prewired (V.)230 (Surcharge for 460V)
Amperage Draw @ 230V 3Ph13
Table Size (L x W) (in.)10 x 50
Spindle TaperR8
Spindle Travel (in.)5
Collet Capacity (in.)1/8 - 5/8
Range of Spindle Speeds (RPM)60-500/500-4,200
Quill Diameter (in.)3-3/8
Quill Down Feed Rates (IPR).0015 / .003 / .008
Head Movement (Deg.)90° R & L 45° F & B
Distance Spindle to Column (Max.) (in.)27
Distance Spindle to Column (Min.) (in.)2-3/4
Table Longitudinal Travel (in.)34-1/4
Table Cross Travel (in.)14-3/4
Travel of Knee (in.)16-1/8
T-Slots Number and Size (in.)3 and 5/8
T-Slot Centers (in.)2-1/2
Saddle Width (in.)20
Max Weight of Workpiece (lbs.)840
Overall Dimension (L x W x H/in.)63 x 63 x 89
Net Weight (lbs.)2,466
Gross Weight (lbs.)2,598
