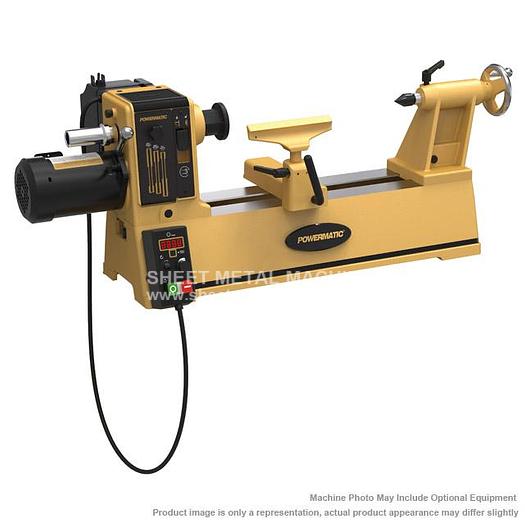

POWERMATIC PM2014 1HP 230V Professional Turning Lathe 1792014

POWERMATIC PM2014 1HP 230V Professional Turning Lathe 1792014


orCall 386-304-3720


Please note: many products ship straight from manufacturer POWERMATIC PM2014 20" x 14" Professional Turning Lathe 1792014 For nearly one hundred years, Powermatic has been dedicated to woodworkers. As a market leader in woodturning, Powermatic is proud to offer the accessible PM2014 lathe. Only requiring a 115V single phase power source, the inverter delivers 1HP, 230V, 3PH performance, giving users maximum speed with minimum input. The new ergonomic stand adjusts from centerline to floor from 34" to 46" allowing the PM2014 to be accessible to users of a range of heights. Digital indexing and spindle speed readout are clearly visible on the magnetic repositionable control box. With a capacity of 14" swing over bed and 20" between centers which can be increased with the optional 13" bed extension. Premium sliding headstock feature allows greater clearance when positioned at the end of the bed for outboard turning. Robust cast iron bed reduces vibration when turning larger and more precise pieces. ITEM: 20" x 14" Professional Turning Lathe MANUFACTURER: POWERMATIC MODEL: PM2014 PART# 1792014


PART #1792014S PM2014 PM Lathe Stand: $449.99 PART #6294755 PM2014 PM Lathe 13" Bed Extension with End Turing Attachment: $249.99


Stock Number1792014
Motor (TEFC)1 HP/230V/3ph
Input Power Requirements115V
Swing Over Bed14-1/4"
Swing Over Tool Rest Base10-3/4"
Working Distance Between Centers19-1/4" (w/ stop bolt) 20-1/4" (w/o stop bolt)
Outboard Turning Diameter Max.20-1/4"
Number of Index Positions24, positive locking
Bed Length20"
Spindle Thread Size (in. x TPI)1/4 x 8
Hole Through Spindle3/8"
Spindle TaperMT2
Speeds (RPM)15-3,600 / 15-900 / 30-1,800 / 60-3,600
Hole Through Tailstock3/8"
Tailstock Quill TaperMT2
Tail Stock Quill TravelACME lead screw, 4-1/4"
Centerline of Spindle to FloorN/A
Overall Dimensions (L x W x H / in.)52 x 24 x 18
Net Weight185 lbs.
