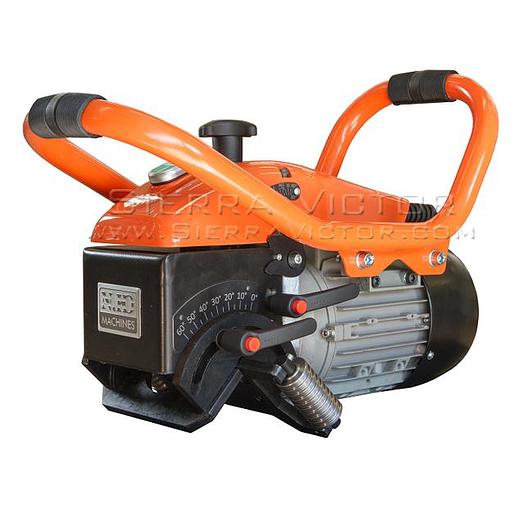

BEVELER USA B22 ZERO Hand Held Beveler

BEVELER USA B22 ZERO Hand Held Beveler

$1,795

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BEVELER USA B22 ZERO Hand Held Beveler Hand held beveler B22 ZERO (maximum width of bevel 0,79" / 20 mm) B22 ZERO is able to perform FACING - machining edges under angle 0° to remove unwanted material layer after plasma or oxygen cutting. High performance motor Continuously adjustable working angle from 0 ° - 60 ° The machine is able to perform FACING - machining edges under angle 0° to remove unwanted material layer after plasma or oxygen cutting. Very compact and ergonomic design allows achieving high productivity during work Unique bevel size adjustment mechanism increases accurracy of the work Circumferential protection frame protects the machine in case of fall and allows more options on how to grip the machine while working With tube accessory can be beveled pipes and tubes to Ø 23,6” / 600 mm. STANDARD EQUIPMENT: Machine B22 ZERO (packed in carton) Tools needed for operational Machine B22 ZERO, ready for work with standard milling head, inserts assembled. Operation manual ITEM: Hand Held Beveler MANUFACTURER: BEVELER USA MODEL: B22 ZERO PART# 29212 / 29211 / 29221 PART # ITEM 29201 MILLING HEAD STANDARD (including of 10 pcs of inserts) 29202 MILLING HEAD PREMIUM(including of 10 pcs of inserts) 29203 INSERTS(1set=10pcs)For standard milling head 29204 ADAPTER FOR TUBES 29206 ADDITIONAL GRIP 29205 INSERTS (1set=10pcs) For premium milling head NMF0107 MAG BRUSH MAXX LARGE

Specifications

ManufacturerBeveler USA
ModelB22 ZERO
ConditionNew
Stock NumberB22 ZERO
Power:1100 W
Speed:2850 RPM
Bevel width:0 to 20 mm / 0 to 0.79 in < 400 MPa / 58.015 PSI 0 to 16 mm / 0 to 0.63 in < 400 MPa / 58.015 PSI
Bevel angle:continuously adjustable between 0° - 60°
Dimensions17,4” x 15” x 12,5” / 442 x 381 x 318 mm
Weight:46,3 lbs / 21 kg
Gross Weight48,51 lbs
PACKAGEDESCRIPTION
29212BEVELER B22 ZERO 220V, 60Hz,3 phase
29211BEVELER B22 ZERO 480V, 50Hz, 3phase
29221BEVELER B22 ZERO 110V, 1 phase
