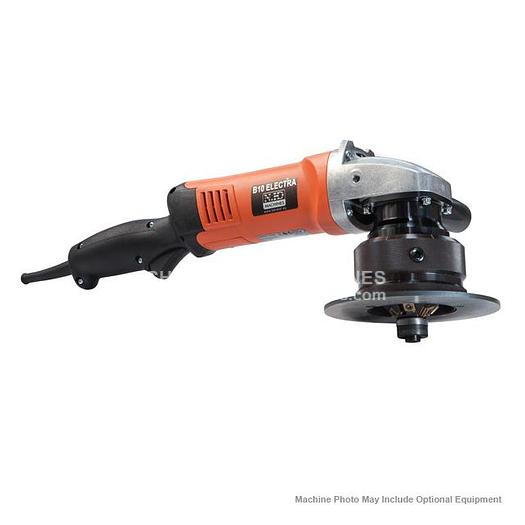

BEVELER USA B10 ELECTRA Hand Held Beveler 120V, 1PH

BEVELER USA B10 ELECTRA Hand Held Beveler 120V, 1PH

$1,595

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BEVELER USA B10 ELECTRA Hand Held Beveler 120V, 1PH BEVELER B10 ELECTRA120V, 1phase, 1500W Without head!!! Beveler B10 ELECTRA (max. width of bevel 0,4" / 10mm) With High Performance Motor And Gearbox Fein Power Tools The beveler B10 ELECTRA is a heavy-duty hand held beveler which uses 6 indexable carbide inserts. The design allows straight edges, contours and cutouts to be beveled with ease. Works with steel, aluminium, copper, plastic and other materials. The precision dial scale allows precise adjustment of the chamfer height. Replacable the tool holder for angle 30°, 37,5°, 45°, 50°, 60° other angles on demand. ErgoGrip - unique, sophisticated and patent-pending ergonomic concept for fatigue-free work. POWERtronic for enormous power, reserve capacity and extremely uniform speed under load. Extensive operator protection thanks to KickBack Stop, self-start lock, soft start, and electronic overload protection. AutoStop dead man's switch Solid metal gear head. Best vibration values in its class. 13 ft long, HO7 industrial cable STANDARD EQUIPMENT: Beveler B10 ELECTRA Needed tools for operation 1 operation manual WITHOUT HEAD! Select the desired head angle (See Optional Items) ITEM: Hand Held Beveler 120V, 1PH MANUFACTURER: BEVELER USA MODEL: B10 ELECTRA PART# 25301 PART # ITEM 27223 30° MILLING HEAD 27227 37,5° MILLING HEAD 27222 45° MILLING HEAD 27224 50° MILLING HEAD 27240 60° MILLING HEAD 27233 MILLING HEAD RADIUS R 3,5mm 27234 MILLING HEAD RADIUS 2,5 mm 27xxx NON STANDARD ANGLE OF MILLING HEAD 27231 INSERTS(10pcs) 26109 INSERTS RADIUS R2,5mm (10pcs) 26110 INSERTS RADIUS R3,5 mm (10pcs) 26111 INSERTS RADIUS R4mm (10pcs) NMF0107 MAG BRUSH MAXX LARGE

Specifications

ManufacturerBeveler USA
ModelB10 ELECTRA
ConditionNew
Stock NumberB10 ELECTRA
Power input:1500 W (1700 W) (POWER FULL Motor made by FEIN TOOLS GERMANY for NKO MACHINES)
Voltage:120V/60Hz (230 V/ 50 Hz)
No Load r.p.m.:2 500 - 8 000RPM /(2700-8500 RPM)
Bevel width:0-0,4" / 0 - 10 mm < 58 015 PSI / 400 MPa; 0 - 0,2" / 0 to 5mm > 58 015 PSI / 400 MPa
Bevel angle:optional 30°, 37,5°, 45°, 50°, 60°, other angles on demand
Dimensions23,23" x 8,27" x 7,88"
Net Weight:aprox. 13,3 lbs / 6 kg
Gross Weight17.64 lbs.
BEVEL ANGLE α°Minimal diameter of the hole in mm
30°Ø 34mm
37,5°Ø 28mm
45°Ø 28mm
50°Ø 28mm
60°Ø 27mm
R 2,5mmØ 41mm
R 3,5/4mmØ 40mm
