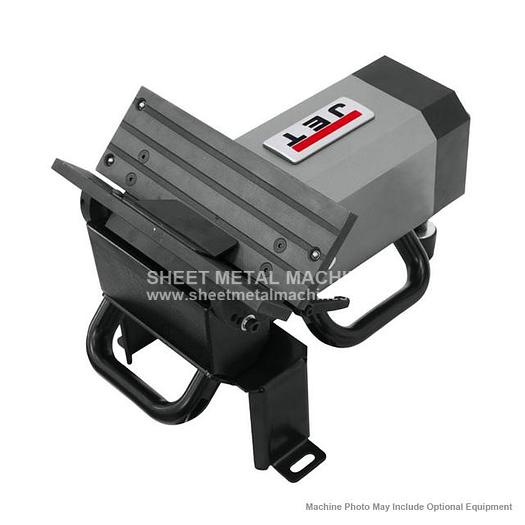

JET JB-10R Portable Plate Beveling Machine for Straight and Round Bevels 751010

JET JB-10R Portable Plate Beveling Machine for Straight and Round Bevels 751010

$1,399

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JB-10R Portable Plate Beveling Machine for Straight and Round Bevels 751010 Weighing roughly 20-pounds, the JET JB-10R is designed to produce both straight and round corner edge bevels and is equipped with a 1-horsepower brushless motor for powerful torque at every speed. The milling type cutter heads with carbide inserts provide precision beveling giving your piece a pristine finish or a clean cut for a stronger weld. Brushless motor increases torque output and RPM's Cutting blade with 5 Indexable blades Cooling fan prevents overheating of the motor Temperature protected. If the temperature reaches over 105 ͦ C (221 ͦ F) the machine will automatically shut off. Three ball pins are added on the guide plate so the contact area can be adjusted at all times, ensuring a smooth chamfering process CE Certified Eliminates slow grinding, fumes, heat and smoke, saving both time and strain on the operator Variable Speed 2000 to 6000 RPM's Depth of cut is adjustable 15 ͦ to 45 ͦ Chamfers both straight & round materials with the change of the blade V-Block style creates consistent edge quality Portable, easy to move around the shop Little to no vibration


OPTIONAL ITEMS: PART #751015 R3 Carbide Inserts (PACK OF 5) 30° Angle for use with JB-10R: $129 PART #751017 R5 Carbide Inserts (PACK OF 5) 30° Angle for use with JB-10R: $129

Specifications

ManufacturerJet
ModelJB-10R
ConditionNew
Stock Number751010
Chamfering Capacity Front Width (In.)1/4
Chamfering Capacity Side Width @ 45 Deg (In.)3/8
Chamfering Angle (Deg.)15-45
V-Block Length (In.)9
Minimum Depth of Cut (In.)1/8
Length of Power Cord (Ft.)5
Gross Weight (lbs.)22
Overall Dimensions (in. LxWxH)15.7" x 11.02" x 11.8"
