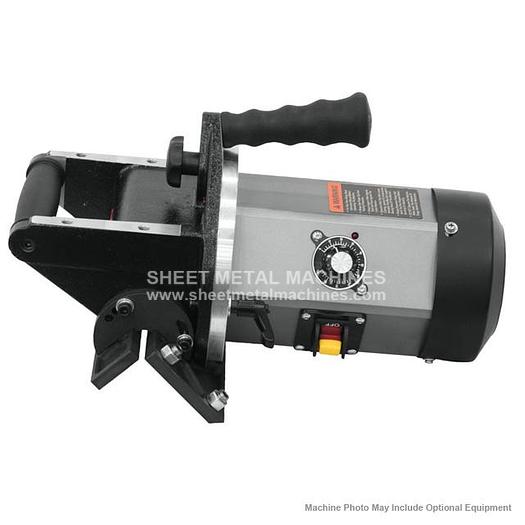

JET JB-10-P Portable Plate Beveling Machine for Straight Bevels 751005

JET JB-10-P Portable Plate Beveling Machine for Straight Bevels 751005

$999

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JB-10-P Portable Plate Beveling Machine for Straight Bevels 751005 ITEM: Portable Plate Beveling Machine for Straight Bevels MANUFACTURER: JET MODEL: JB-10P PART# 751005 Weighing roughly 20-pounds, the JET JB-10P is engineered to produce straight edge bevels and is equipped with a 1-horsepower brushless motor for powerful torque at every speed. The milling type cutter heads with carbide inserts provide precision beveling, giving your piece a pristine finish or a clean cut for a stronger weld. Brushless motor increases torque output and RPM's Cutting blade with 5 Indexable blades Cooling fan prevents overheating of the motor Temperature protected. If the temperature reaches over 105 ͦ C (221 ͦ F) the machine will automatically shut off. Three ball pins are added on the guide plate so the contact area can be adjusted at all times, ensuring a smooth chamfering process UL/CSA: Following strict guidelines and electrical requirements, this JET Beveling machine is UL /CSA Certified Non-slip ergonomic rubber handle Plate mounted to relieve operator fatique Eliminates slow grinding, fumes, heat and smoke, saving both time and strain on the operator Variable Speed 2000 to 5000 RPM's Depth of cut is adjustable 15 ͦ to 45 ͦ Chamfer's straight edges V-Block style creates consistent edge quality Portable, easy to move around the shop Little to no vibration

Specifications

ManufacturerJet
ModelJB-10P
ConditionNew
Stock Number751005
Stock Number751005
Chamfering Capacity Front Width (In.)1/4
Chamfering Capacity Side Width @ 45 Deg (In.)3/8
Chamfering Angle (Deg.)15-45
V-Block Length (In.)9
Minimum Depth of Cut (In.)1/8
Length of Power Cord (Ft.)5
Gross Weight (lbs.)22
Overall Dimensions (in. LxWxH)15.7" x 11.02" x 11.8"
