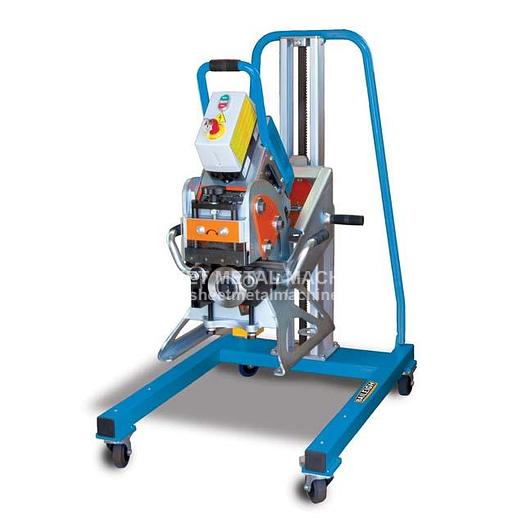

BAILEIGH Heavy Duty Plate Beveler CM-15DS

BAILEIGH Heavy Duty Plate Beveler CM-15DS

$15,728

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer


  • Sometimes the hardest part of beveling consists of positioning the machine. That’s why this convenient model combines top-quality beveling technology with a rotating stand and trolley.
  • 2 hp motor runs on 220-volt 3-phase power.
  • Cuts bevels from 3/16 to 1-9/16" (5 to 40 mm) in thickness.
  • Handles minimum plate width of 2.75" (70 mm) and minimum length of 5-7/8" (150 mm).
  • 2 shear blades rotate, like a can opener, to create welding-ready bevels on linear plates of any shearable material.
  • Direct-drive gearbox controls blade motion.
  • Beveling angle adjusts continuously from 15° to 50° without any additional parts.
  • Can hook material in either a horizontal or vertical position, allowing for full 180° rotation when attached to stand.
  • Comes standard with manipulator stand and movable trolley station to adapt the machine to any given workspace.
  • Backed by our 1-year parts warranty and lifetime technical support.
  • Use this machine for: beveling a wide variety of materials, including iron, steel (up to 85,000lbs/in² or 60kg/mm²), stainless steel, brass, copper, and aluminum.
  • Why choose the CM-15DS over similar machines?
  • No more flipping sheet metal over for a double-sided bevel! This unit rotates 180°, when used with the included stand, saving you time and effort.
  • “Floating" suspension of the stand compensates for floor unevenness or deformations of the steel plate, increasing accuracy.
  • You can raise the beveler to any working height by mounting the machine on the trolley and cranking lift handle.
  • Assemble or disassemble the unit in seconds without tools, using the efficient clamping system.
  • Expert technical support and project advice from Baileigh’s team of reps is just a phone call away for as long as you’re using the CM-15DS.

ITEM: Heavy Duty Plate Beveler MANUFACTURER: BAILEIGH MODEL: CM-15DS

Specifications

ManufacturerBaileigh Industrial
ModelCM-15DS
ConditionNew
Stock NumberCM-15DS
Max. Bevel Width.59"
Bevel Angle15° to 50° Variable
Material Thickness.236" to 1.57"
Cutting Speed11.4 F/min.
Blade Speeds2800 rpm
Motor2 HP
Shipping Dimensions27" x 19" x 40"
Baileigh Sales TaxDue to Wayfair ruling from the Supreme Court: Effective 12/1/2018 ALL Baileigh Industrial Distributors are required to collect sales tax on ALL Baileigh Products in ALL STATES regardless of purchase point EXCEPT in the following States: AK AZ DE FL KS MO MT NH NY OR VT If you have a manufacturing tax exemption, please submit with your order.
Shipping Weight261 lbs.
