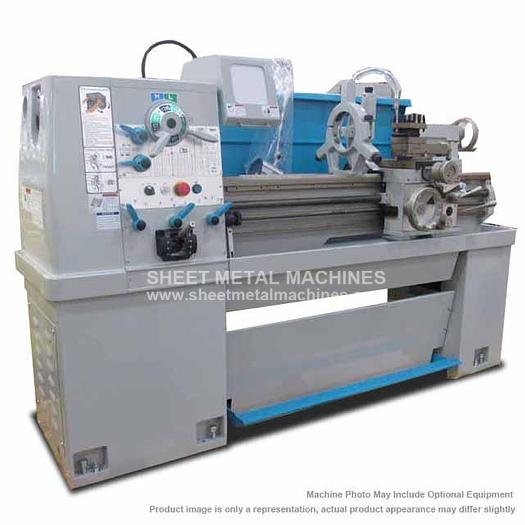

ACRA Precision High Speed Engine Lathe 1340C

ACRA Precision High Speed Engine Lathe 1340C

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ACRA 13" x 40" Precision High Speed Engine Lathe 1340C Base one piece casting Meehante casting, vibration stress relieved Induction hardened and precision ground bed ways Precision hand scraped removable gap Foot brake Turcite B coating between the bed and carriage (except 1340C) Oil bath lubrication Heat treated precision ground gears Inch, metric, module and diametrical treads Automatic feed and threading, fully interlocked Saddle and top slide locking system Forward off reverse lever 4 way tool post T-Slot compound Supported by 2 precision taper roller bearings and one ball bearing Dynamically balanced, hardened and precision ground Forward reversing clutch not available model 1340C All gears chromium molybdenum, heat treated and precision ground Manufacture in England

ITEM: 13" x 40" Precision High Speed Engine Lathe MANUFACTURER: ACRA MODEL: 1340C CALL FOR OPTIONS AND PRICING

Specifications

ManufacturerACRA
Model1340C
ConditionNew
Stock Number1340C
Swing Over Cross Slide:8-1/4"
Swing In Gap:20"
Gap in Front of Face Plate6"
Distance Between Centers40"
Width of Bed9"
Spindle Bore1-9/16"
Spindle Speeds80-2000 RPM
No. of Speeds8
Compound Slide4"
Metric Threads
Module Threads
Diametrical Threads
Longitudinal feed0.002-0.067 IPR
Cross feed0.001-0.0375 IPR
Quill Travel:4"
Quill TaperMT #3
Head Stock Lubrication1/8HP
Gross (approx.)2,440 lbs.
Width x Height
