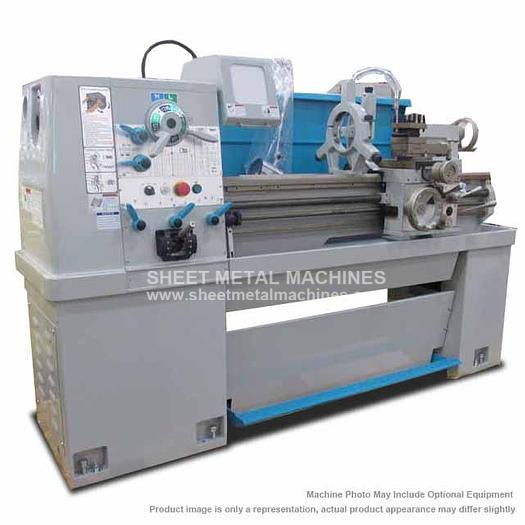

ACRA Precision High Speed Engine Lathe 1550C

ACRA Precision High Speed Engine Lathe 1550C
$26,600
Description
Please note: many products ship straight from manufacturer ACRA 15" x 50" Precision High Speed Engine Lathe 1550C Base one piece casting Meehante casting, vibration stress relieved Induction hardened and precision ground bed ways Precision hand scraped removable gap Foot brake Turcite B coating between the bed and carriage (except 1340C) Oil bath lubrication Heat treated precision ground gears Inch, metric, module and diametrical treads Automatic feed and threading, fully interlocked Saddle and top slide locking system Forward off reverse lever 4 way tool post T-Slot compound Supported by 2 precision taper roller bearings and one ball bearing Dynamically balanced, hardened and precision ground Forward reversing clutch not available model 1340C All gears chromium molybdenum, heat treated and precision ground Manufacture in England
CALL FOR OPTIONS AND PRICING
Specifications
Manufacturer | ACRA |
Model | 1550C |
Condition | New |
Stock Number | 1550C |
Swing Over Cross Slide: | 9-3/8" |
Swing In Gap: | 24" |
Gap in Front of Face Plate | 7-5/8" |
Distance Between Centers | 50" |
Width of Bed | 11" |
Spindle Bore | 2-3/16" |
Spindle Speeds | 25-2000 RPM |
No. of Speeds | 16 |
Compound Slide | 4-3/4" |
Metric Threads | 0.2-14 PITCH (39) |
Module Threads | 0.3-3.5 (18) |
Diametrical Threads | 8-44 (21) |
Longitudinal feed | 0.002-0.067 IPR |
Cross feed | 0.001-0.0375 IPR |
Quill Travel: | 5" |
Quill Taper | MT #4 |
Head Stock Lubrication | 1/8HP |
Gross (approx.) | 3,750 lbs. |
Width x Height | — |
