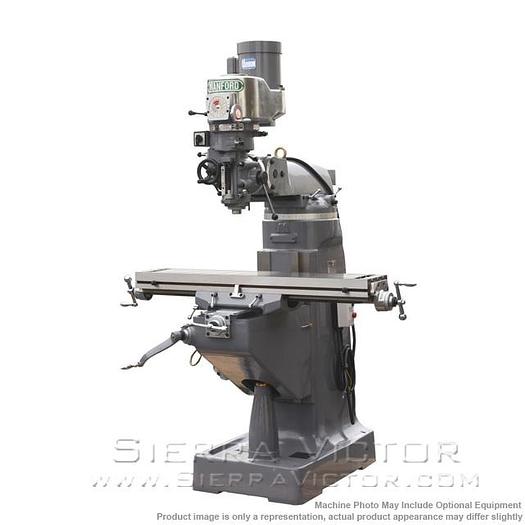

MANFORD Precision High Quality 2V Vertical Turret Milling Machine with 9" x 42" Table

MANFORD Precision High Quality 2V Vertical Turret Milling Machine with 9" x 42" Table

$8,000

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer MANFORD 9" x 42" Precision High Quality 2V Vertical Turret Milling Machine with 9" x 42" Table 9” X 42” or 9” x49” Variable speed, 3HP Spindle Motor, 220/440V, 3 phase R8 (NST#30) Spindle Hardened & Ground. Chrome-Plated Slide Ways and Gibs Hardened & Ground Table top. Double brass-nut backlash compensated on XY leadscrew Meehanite casting Chrome plated precision ground quill with internal ground of quill housing Class 7 spindle bearing Power quill feeds with automatic stop Tool box & Tools Rubber chip cover (front & rear ) ISO 9002 Certification Quill diameter 3-3/8” One shot lubrication system Tool and tool box Made in Taiwan by Manford One-year warranty for all mechanical and one-year for electrical components ITEM: 9" x 42" Precision High Quality Vertical Turret Milling Machine MANUFACTURER: MANFORD MODEL: 2V Newall DP700 mill package, 3 Axis: $2,350 Newall DP700 mill package, 2 Axis: $1,750 CALL FOR MORE OPTIONS

Specifications

ManufacturerManford
Model2V
ConditionNew
Stock NumberMODEL 2V
Table9" x 42" or 9” x 49” (228 x 1066mm)
T-Slot No.x Size3” x 5/8” (3 x 15.875mm)
Longitudinal travel (W power feed )36” (762mm)
Cross travel12” (305mm)
Travel of knee16” (406mm)
Ram travel15” (390mm)
Quill travel5” (127mm)
Table to spindle nose (D)1.3” – 17.3” (34-440mm)
Over swivel on turret360º
Head Swivel ( R & L )90º
Head tilt ( UP & DOWN )45º
Spindle to column (F):6” x 21.4” (153x544mm)
Spindle motor:3 HP
Spindle taperR8
Quill feed0.0015” - 0.003” - 0.006”
Spindle Speed (r.p.m.):( 60Hz) 70-4500
Overall height (A):84” (2140mm)
Overall depth (B):63-5/8” (1618mm)
Overall width (C):59” (1497mm)
Net Weight2,200 lbs. (950 Kgs)
