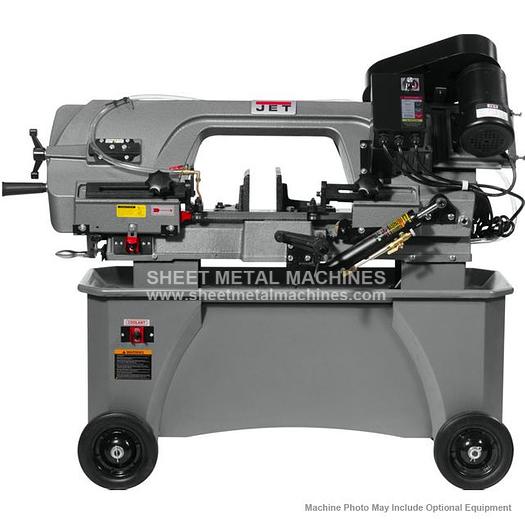

JET HVBS-712V Horizontal/Vertical Bandsaw JT9-415559

JET HVBS-712V Horizontal/Vertical Bandsaw JT9-415559
$2,199
Description
Please note: many products ship straight from manufacturer JET HVBS-712V, 7 x 12 inch Horizontal / Vertical Bandsaw, JT9-415559 Sealed hardened and ground gear drive Heavy casted iron bow and bed Improved wider stand with built-in storage cabinet and chip tray Blade wheels are made of flanged cast iron Following strict guidelines and electrical requirements, this JET bandsaw is CSA/US certified for added safety UL-Listed switches Blade tensioning guides Auto shut-off after cut Speed changes are now done with the turn of a knob, no need to change belts Four 8" rubber wheels for ease of movement Tool-less quick lock vise with preset mitering positions at 15, 30 & 45° Tool-less quick change vise miters to 45° Multi-position blade guide enhance use in vertical position and increases the throat capacity from 4" to 8" Side-eccentric shaft and ball bearing: rear-ball bearing blade guides Cast-mounted hydraulic downfeed for ease of cut Adjustable hydraulic feed system Vertical 10" x 12" work table Large 10" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
STANDARD EQUIPMENT: Tool-less quick lock vise with preset mitering positions at 15, 30 & 45° Multi-position blade guide Improved wider base with built-in storage Infeed table assembly Four 8" rubber wheels for ease of movement Micro adjustable tool-less material stop allows for quicker set-up and accurate repeatability Bi-metal 5/8T Blade Coolant pump with 1-gallon tank, 1/8HP, single-phase motor complete with hose, flexible nozzle, shut-off valve, tank and baffle
Specifications
Manufacturer | Jet |
Model | HVBS-712V |
Condition | New |
Stock Number | JT9-415559 |
Round Capacity at 90° (in.) | 7 |
Round Capacity at 45° (in.) | 4-1/2 |
Rectangle Capacity at 90° (in.) | 1 (H) x 12 (W) 2 (H) x 11-1/4 (W) 4 (H) x 11 (W) 7 (H) x 10-3/8 (W) |
Rectangle Capacity at 45° (in.) | 6-1/2 (H) x 4-1/2 (W) |
Square Capacity at 90° (in.) | 7 x 7 |
Square Capacity at 45° (in.) | 4-1/2 x 4-1/2 |
Throat Depth (in.) | 7 |
Vertical Tables (in.) | 9-7/16 x 10 |
Vise Swivels (deg.) | 45 |
Blade Size (in.) | 3/4 x .032 x 93 |
Blade Wheel Diameter (in.) | 11-3/4 |
Blade Speed (SFPM) | 80 - 255 |
Bed Height (in.) without Wheels | 22-1/4 |
Motor/Electrics | 3/4HP, 115/230V, 1-Ph |
Prewired | 115V |
Overall Dimensions (LxWxH /in.) | 48 x 17 x 40 |
Net Weight (lbs.) | 368 |
Gross Weight (lbs.) | 400 |
