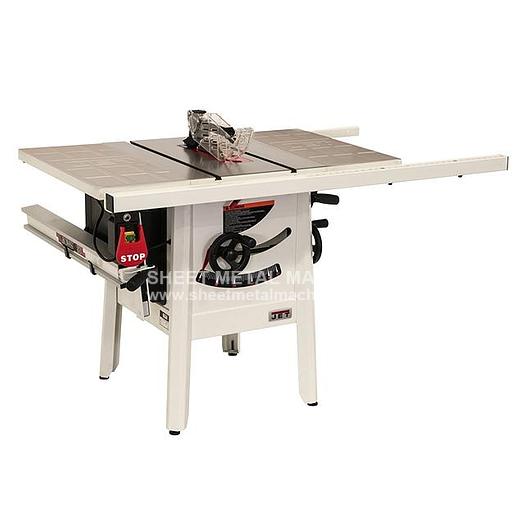

JET JPS-10 ProShop 1.75 HP 1 PH 230V 30" Fence System, Cast Wing with Riving Knife 725002K
JET JPS-10 ProShop 1.75 HP 1 PH 230V 30" Fence System, Cast Wing with Riving Knife 725002K
$1,549.99
Description
Please note: many products ship straight from manufacturer JET JPS-10 10" ProShop 1.75 HP 1 PH 230V 30" Fence System, Cast Wing with Riving Knife 725002K The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity. Newly designed arbor lock to change blades quickly and easily Quick release riving knife for hassle free riving knife changes Improved dust shroud around blade for greater dust collection Convenient, magnetic paddle switch for the safest operation possible Innovative single belt design for easier belt tensioning and reduced vibration. Motor reset switch conveniently relocated to the power switch, instead of the motor Low profile riving knife included Redesigned guard for better protection and ease of use On board storage for all included accessories CSA certified
ITEM: 10" Proshop 1.75HP 1PH 230V 30" Fence System, Steel Wing with Riving Knife MANUFACTURER: JET MODEL: JPS-10 PART# 725002K
OPTIONAL ITEMS:
PART # 725004 ProsShop II Dado Insert 708119 JMB-UMB-HD Heavy-Duty Universal Mobile Base 708158 Mobile Base Extension Kit
Specifications
| Manufacturer | Jet |
| Model | JPS-10 |
| Condition | New |
| Stock Number | 725002K |
| Style (Type) | Contractor |
| Blade Diameter (In.) | 10 |
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 4000 |
| Maximum Depth of Cut (In.) | 3-1/8 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Rip Left of Blade (In.) | 13-1/2 |
| Maximum Rip Right of Blade (In.) | 30 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 8.81 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Table Height from Floor (In.) | 34-3/4 |
| Table Size (L x W) (In.) | 20 x 27 |
| Table Size with Extension (L x W) (In.) | 44 x 27 |
| Miter Gauge Type | T-Slot with Stops |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1-3/4 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 14.8 |
| Recommended Circuit Size (Amps.) | 20 |
