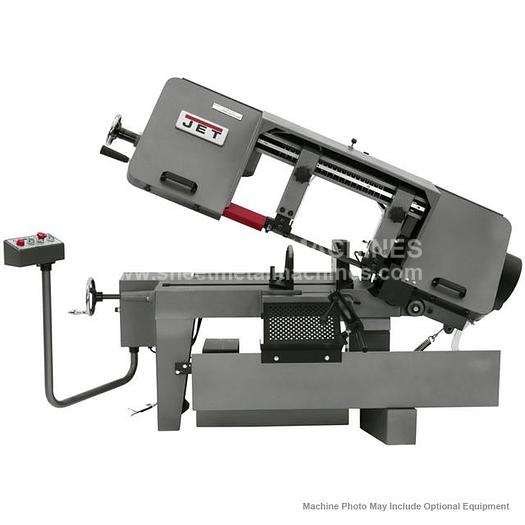

JET J-7040 Horizontal Bandsaw 414478
JET J-7040 Horizontal Bandsaw 414478
$5,669
Description
Please note: many products ship straight from manufacturer JET J-7040, 10" x 16" Horizontal Bandsaw, 414478 For added safety, the J-7040 follows strict guidelines and electrical requirements to be certified by CSA Group Swing away control panel houses major saw controls Variable speed drive system allows the operator to easily fine tune the blade speed Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath Patented 3-Jaw vise with rapid action moveable jaw for faster set up One-piece wheel cover Coolant system Adjustable material stop 1" Bi-Metal blade ITEM: 10" x 16" Horizontal Bandsaw MANUFACTURER: JET MODEL: J-7040 PART# 414478
Specifications
| Manufacturer | Jet |
| Model | J-7040 |
| Condition | New |
| Stock Number | 414478 |
| Part # | 414478 |
| Cutting Capacity (W x D) (in.) | 10 x 16 |
| Round at 90° (in.) | 10 |
| Round at 45° (in.) | 10 |
| Rectangle at 90° (in.) | 7 x 16 / 10 x 10 |
| Rectangle at 45° (in.) | 6-1/2 x 11 |
| Vise Swivels (Deg.) | 45° |
| Blade Length (In.) | 135 |
| Blade Size (in.) | 1 x .035 x 135 |
| Blade Speeds (SFPM) | 100 - 350 |
| Blade Wheel Diameter (in.) | 14 |
| Bed Height (in.) | 23-1/2 |
| Motor | 2HP, 230/460V, 3Ph, Prewired 230V |
| Overall Dimensions (in.) | 75-1/2 x 33 x 41 |
| Weight (lb.) | 927 |
