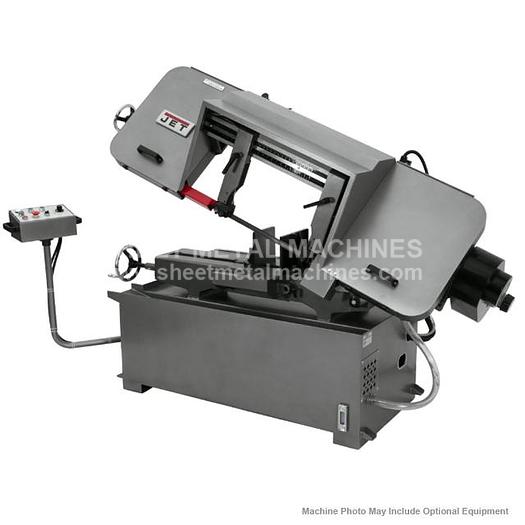

JET J-7060-4 Semi-Automatic Horizontal Bandsaw 414476-4

JET J-7060-4 Semi-Automatic Horizontal Bandsaw 414476-4

$12,199

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET J-7060-4 12" x 20" Semi-Automatic Horizontal Bandsaw 414476-4 This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time. Swing away control panel houses major saw controls Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder Saw head raises hydraulically after each cut Variable speed drive system allows the operator to easily fine tune the blade speed Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath Cast Iron blade wheels Patented 3-Jaw vise with rapid action moveable jaw for faster set up Coolant system Adjustable material stop 1" Bi-Metal blade

Specifications

ManufacturerJet
ModelJ-7060-4
ConditionNew
Stock Number414476-4
Cutting Capacity (W x D) (In.)12 x 20
Round at 90° & 45° (in.)12
Rectangle at 90° (in.)12 x 20
Rectangle at 45° (in.)12 x 12
Vise Swivels (Deg.)45°
Blade Size (in.)1 x .035 x 156
Blade Speeds (SFPM)82 - 262
Blade Wheel Diameter (in.)17
Bed Height (in.)26-1/4
Motor3HP, 460V, 3Ph
Overall Dimensions (in.)87 x 37-1/2 x 53
Weight (lbs.)1,144
