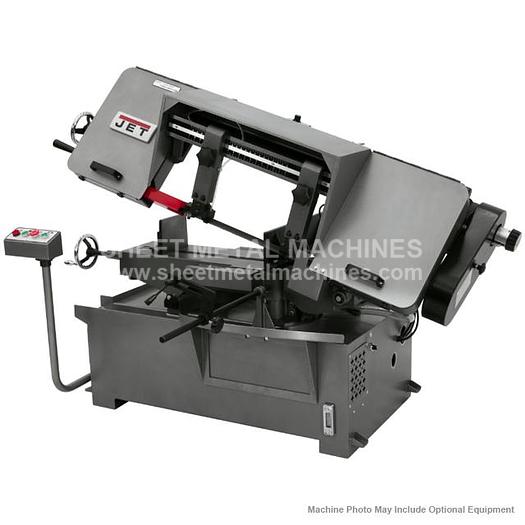

JET J-7040M Horizontal Mitering Bandsaw 414475

JET J-7040M Horizontal Mitering Bandsaw 414475


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET J-7040M, 10" x 16" Horizontal Mitering Bandsaw, 414475 JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results. Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured Swing away control panel houses major saw controls Variable speed drive system allows the operator to easily fine tune the blade speed Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath Cast Iron blade wheels Coolant system Adjustable material stop 1" Bi-Metal blade


Stock Number414475
Cutting Capacity (W x D) (In.)10 x 16
Round at 90° (in.)10
Round at 45° (in.)8-1/2
Rectangle at 90° (in.)2 x 16 / 10 x 14
Rectangle at 45° (in.)8-1/2 x 9
Head Movement (Deg.)45°
Vise Swivels (deg.)45°
Blade Size (in.)1 x .035 x 135
Blade Length (In.)135
Coolant Tank (gal)8
Blade Wheel Diameter (in.)14
Blade Speeds (SFPM)100-350
Bed Height (in.)25-1/2
Floor Space Required (in./LxWxH)76 x 30 x 48
Ship Weight (lbs.)1,134
Motor2HP, 230/460V, 3ph
PrewiredPrewired 230V
