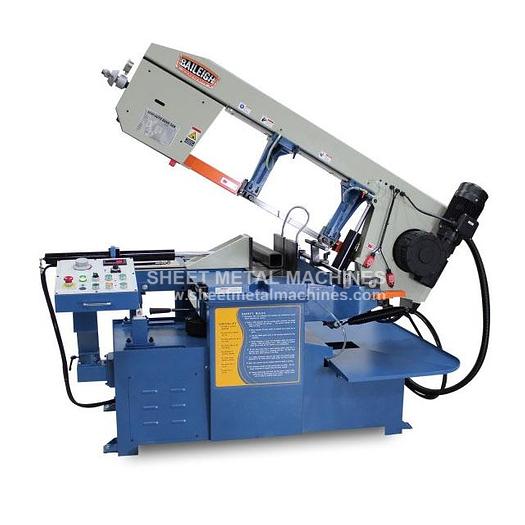

BAILEIGH Band Saw BS-20SA-DM

BAILEIGH Band Saw BS-20SA-DM

$20,040

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Band Saw BS-20SA-DM

  • We built this semi-automatic band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
  • Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
  • Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
  • You can fine-tune the speed for materials like mild steel, bronze, or aluminum.
  • Digital readout (DRO) allows you to reproduce settings with ease.
  • Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
  • Cast iron bow resists vibrations and helps to ensure a high-quality cut.
  • Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
  • You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
  • Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
  • Comes with heavy-duty infeed and outfeed tables for easier material handling.
  • Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
  • Electro-welded steel framegives the machine structural strength to maintain accuracy.
  • Compact floor plan conserves space in your shop.
  • High-pressure flood coolant system washes away metal chips and helps blades last longer.
  • We typically keep this horizontal band saw and its parts in stockfor fast deliveries.
  • Covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Talk to a Baileigh rep with hands-on machine experience whenever if you need help.

Specifications

ManufacturerBaileigh Industrial
ModelBS-20SA-DM
ConditionNew
Stock NumberBS-20SA-DM
Country of ManufactureTaiwan
ReturnHydraulic
Miter AdjustmentDual Miter Swivel Head
Miter Angle0 – 60°, 45°L
Motor3 HP
Capacity Rectangle 90°13" x 18" / 13" x 10.6" / 12.4" x 7.7"
Capacity Round 90°/ 45° / 60°13" x 12" x 8.5"
Capacity Square 90°/ 45° / 60°13" x 12" x 8.5"
Blade GuideCarbide / Roller
Blade Speed (fpm)60 - 306 Inverter Driven
Descent ControlPressure Assist Hydraulic
DriveInverter Direct
Power220V or 440V 3-Phase (440V special order)
Shipping Dimensions88.6" x 35.5" x 61.4"
Shipping Weight2,156 lbs.
