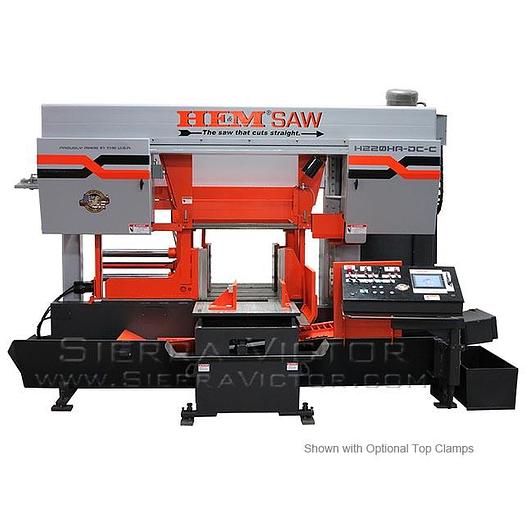

HE&M Dual Column Bandsaw H220HA-DC-C

HE&M Dual Column Bandsaw H220HA-DC-C

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer HE&M Dual Column Bandsaw H220HA-DC-C MADE IN USA! 24" Solid Discharge Table Adjustable Blade Speed w/ LED Readout Adjustable Clamping Force Adjustable Cutting Force Adjustable Feed Rate Blade Brush Broken Blade Indicator Carbide Blade Guides Chip Auger System Cut Watcher System Flood Coolant System w/ Wash-Down Hose Interlocking Vise Jaws Safety Lockout Key Out of Stock Indicator Powered Blade Tension Powered Guide Arm Swing-Away Console Touch Screen (Flat Panel Touch Control) Lead In/Lead Out Roller Guides Variable Frequency Controller ITEM: 22" Dual Column Bandsaw MANUFACTURER: HE&M MODEL: DUAL COLUMN SERIES PART# H220HA-DC-C 10' Powered Roller Stock Table 10' Roller Stock Table 3rd Holding Vise on Feed 5' Roller Stock Table Free Standing Console Full Capacity Top Clamp – Outboard Vise Hydraulic Computer Controlled Traverse (HCCT) Laser Light System Outboard Powered Vise on Discharge Pedestal Mounted Console Roller Discharge Table (in Lieu of Solid) Full Capacity Top Clamp – Main Vise (Increases Remnant Length by 2") Full Capacity Top Clamp – Feed Vise (Increases Remnant Length by 2")


Stock NumberH220HA-DC-C
Capacity22" W x 22" H
Capacity: Bar-feed0-24" (Multiple Index)
Blade21’0" x 2" x .063"
Motor10 HP
Hydraulic Motor5 HP
Electrical Motor Requirement220V/3PH or 440V/3PH (This is Not a Dual Voltage Machine)
