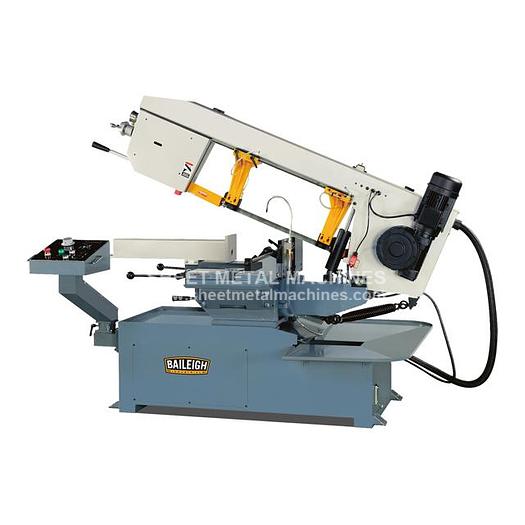

BAILEIGH Dual Mitering Band Saw BS-20M-DM

BAILEIGH Dual Mitering Band Saw BS-20M-DM

$12,895

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer BAILEIGH Dual Mitering Band Saw BS-20M-DM Need to increase production? The manual BS-20M-DM offers hydraulic descent, a roller infeed, and a material stop for efficiency. With its steel frame, the saw will last for many years.
  • Inverter drive lets you adjust blade speed: 69 to 306 fpm.
  • Accepts large 1.25” blade (included) for speed and accuracy. The larger the blade, the straighter the cut.
  • Available in 220-volt triple-phase or 440-volt triple-phase (special order) models.
  • Industrial reduction gearbox transmission makes the saw more reliable than one with a belt and pulley system.
  • Miters 45° left and 60° right. Just push or pull the head to the angle you need.
  • Rigid cast iron bow adds to the structural strength of the machine and reduces vibrations.
  • Quick-lock vise has serrated jaws that grip onto round material, preventing it from spinning and ruining a blade.
  • Hydraulic descent allows you to select the proper speed, increasing cut quality and blade life.
  • Roller infeed and outfeed table enables you to slide the material to and from the blade, saving strain.
  • Includes a material stop for conveniently making repeat cuts.
  • Digital readout shows the blade speed. Adjust the dial to use the same settings for multiples of a part.
  • Electro-welded steel frame keeps vibrations down to a minimum, so your cuts stay straight and accurate.
  • Our patented blade tensioning gauge simplifies the process of checking the tension and adjusting it. Just line the black arrow up with the green area.
  • High-pressure flood coolant system washes away chips and helps the blade last longer.
  • Huge chip tray at the bottom collects debris and keeps your shop clean.
  • Automatic shut-off system stops the machine once it’s done cutting, for your safety.
  • We typically keep this saw and its parts in stock for fast deliveries.
  • Covered by a 1-year parts warranty.
  • The dual mitering horizontal band saw comes with lifetime technical support by phoneCall up our team of experienced reps for troubleshooting or project advice.

ITEM: Dual Mitering Band Saw MANUFACTURER: BAILEIGH MODEL: BS-20M-DM

Specifications

ManufacturerBaileigh Industrial
ModelBS-20M-DM
ConditionNew
Stock NumberBS-20M-DM
ReturnManual
Miter AdjustmentDual Miter Swivel Head
Miter Angle0 – 60°, 45°L
Motor30 HP
Capacity Round 90°/ 45° / 60°13" x 12" x 8.5"
Capacity Square 90°/ 45° / 60°13" x 12" x 8.5"
Table Height30.5"
Blade GuideCarbide / Roller
Blade Speed (fpm)60 - 306 Inverter Driven
Descent ControlHydraulic
DriveInverter Direct
Power220V, 60Hz, 3-Phase
Shipping Dimensions88.6" x 35.5" x 61.4"
Shipping Weight2,156 lbs
