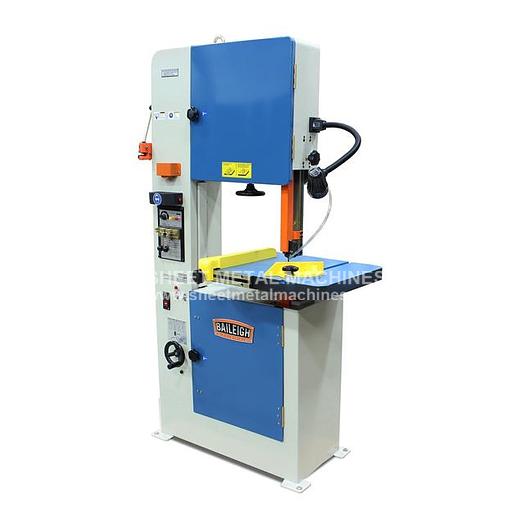

BAILEIGH Vertical Band Saw BSV-18VS

BAILEIGH Vertical Band Saw BSV-18VS
$7,109
Description
Please note: many products ship straight from manufacturer BAILEIGH 18" Vertical Band Saw BSV-18VS
- Within our lineup of vertical bandsaws, the BSV-18VS metal cutting band saw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
- 1 hp motor runs on 120-volt power.
- Wide 17.875" throat depth.
- 10” maximum cutting thickness.
- Accepts standard 1/8” to 5/8” blades.
- Cast iron table can pivot front to back and left to right.
- Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
- Variable speed from 85 to 375 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- Change the speed with the hand wheel (just turn right for higher speed, left for lower).
- Speed scale lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
- This band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
- Halogen work light lets you see what you’re cutting more clearly.
- Covered by a 1-year parts warranty.
- Both the saw and its replacement parts are typically in stock for fast deliveries.
- Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
- Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Baileigh Industrial |
Model | BSV-18VS |
Condition | New |
Stock Number | BA9-1230389 |
Table Size | 23.6” x 19.6” |
Butt-Welder Capacity (Blade Width) | .125” – .625” |
Slant of Table | 15° Left, 15° Right |
Motor | 1 HP |
Maximum Thickness | 10" |
Throat Depth | 17.875" |
Working Height | 36.8" |
Blade Length | 141.73" |
Blade Speed | 85 - 375 fpm |
Blade Thickness | .032" |
Power | 120V |
Shipping Dimensions | 60” x 45” x 93” |
Shipping Weight | 866 lbs. |
