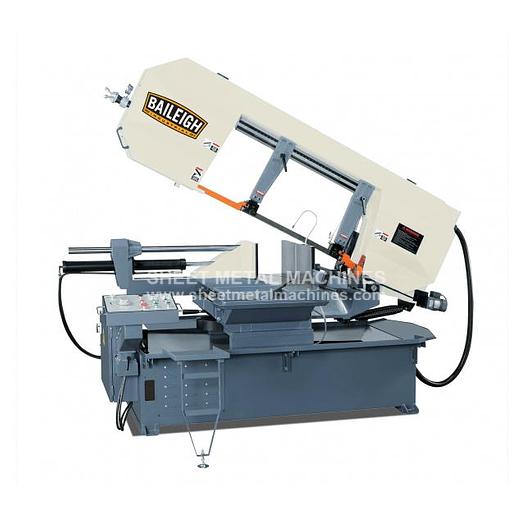

BAILEIGH Semi-Automatic Dual Mitering Horizontal Band Saw BS-24SA-DM

BAILEIGH Semi-Automatic Dual Mitering Horizontal Band Saw BS-24SA-DM

$23,137

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Semi-Automatic Dual Mitering Horizontal Band Saw BS-24SA-DM


  • This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production
  • Cuts 18” round or 15” x 24” rectangle at 90°.
  • Swivel head miters 60° left and right.
  • Accepts a standard 1.5” blade (included). This width makes the cutting fast and accurate.
  • 106 to 317 fpm variable blade speed, allowing for infinite blade speed adjustments.
  • Adjustable speed lets you fine-tune for different materials, like mild steel, bronze, or aluminum.
  • Runs on 220-volt 3-phase power for reliability.
  • Sturdy cast iron vise and bow prevent wobbling and keep cuts accurate.
  • Semi-automatic system with hydraulic downfeed speeds up production. You just put the material in place and start the controls. The saw will take care of the rest.
  • Industrial-grade hydraulics open and close the quick-lock vise.
  • Adjustable hydraulic descent pressure helps you achieve faster cut times and longer blade life.
  • You can change the return position of the saw head for faster cycle times between cuts on smaller dimensioned pieces.
  • Patented blade tension device allows you to set the right tension quickly and easily. Line up the black arrow with the green liquid-filled gauge.
  • Electro-welded steel frame stabilizes the machine, reducing vibrations for many years of accurate cuts.
  • Flood coolant system washes away metal chips and helps prolong blade life.
  • We typically keep all replacement parts in stock for fast deliveries.
  • Covered by a 1-year parts warranty.
  • With lifetime technical support by phone, you can call up our team of experienced reps any time you have a problem or need project advice.

ITEM: Semi-Automatic Dual Mitering Horizontal Bandsaw MANUFACTURER: BAILEIGH MODEL: BS-24SA-DM

Specifications

ManufacturerBaileigh Industrial
ModelBS-24SA-DM
ConditionNew
Stock NumberBS-24SA-DM
ReturnHydraulic
Miter AdjustmentDual Miter Swivel Head
Miter Angle0 - 60° Left and Right
Motor5 HP
Capacity Round 90°18.1"
Capacity Square 90°18.1"
Capacity Rectangle 90°17" x 24"
Capacity Round 45°17.5"
Capacity Round 90°/ 45° / 60°18" x 15.7" x 11"
Table Height31.5"
Blade GuideCarbide x Roller
Blade Speed (fpm)106 - 317
Descent ControlPressure Assist Hydraulic
DriveBelt x Pulley
Power220 Volt Three Phase
Shipping Dimensions111.4" x 44.9" x 73.2"
Shipping Weight3,234 lbs.
