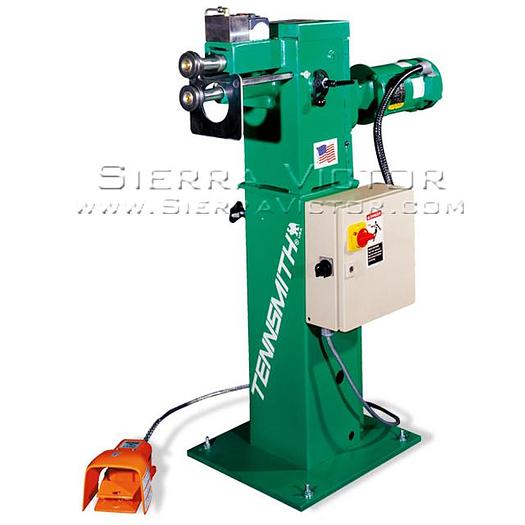

TENNSMITH Powered Swaging Machine with Hydraulic Depth Selection PR16-H

TENNSMITH Powered Swaging Machine with Hydraulic Depth Selection PR16-H

$11,190

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer TENNSMITH 16 ga Powered Rotary Machine with Hydraulic Depth Selection PR16-H 230V, 3 Phase, 60Hz, 3/4 HP MADE IN USA. TENNSMITH'S power rotary is versatile machine capable of forming numerous applications up to 16-gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stand. A 3/4 HP gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit, an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit. Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available. Included is One Set of 3/8 Single Bead Rolls Contact Sierra Victor Industries at 386-304-3720 for special application forming. Hydraulic powered forming pressure unit Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available. OPTIONAL MODELS: #86506: 460V, 3 Phase, 60Hz, 3/4 HP Motor: $11,734 OPTIONAL ITEMS:

  • Wired for CSA Canadian Electrical Standard: ADD $395
  • 86520: Single Bead Rolls Set 3/16: $175
  • 86521: Single Bead Rolls Set 1/4: $175
  • 86522: Single Bead Rolls Set 1/2: $175
  • 86535: Ogee Bead Rolls Set: $280
  • 86540: Flattening Rolls Set: $385
  • 86545: Elbow Edging Rolls Set: $235
  • 86550: Off Set Rolls Set: $175
  • 86555: Flange Rolls Set: $140
  • 86560: Turning Rolls Set: $215
  • 86565: Burring Rolls Set: $215
  • 86525: Crimping Rolls Set: $265
  • 86530: Combination Bead/Crimp Rolls Set: $360
  • 86570: Furnace Collar Rolls Set: $350

Rolls Not Listed, Please Call 386-304-3720

Specifications

ManufacturerTennsmith
ModelPR16-H
ConditionNew
Stock Number86505
Capacity - Mild Steel16 ga
Capacity - Stainless Steel20 ga
Throat10"
Distance, Shaft Center to Center2.5"
Gear Ratio3:1
Working Speed Variable3 to 45 rpm
Motor3/4 HP
Voltage230v/3/60
Shipping Weight:350 / 390 lbs.
