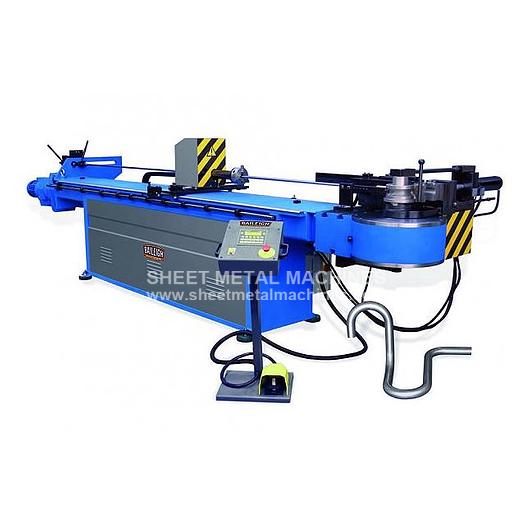

BAILEIGH Mandrel Bender MB-35NCE-2

BAILEIGH Mandrel Bender MB-35NCE-2

Contact us for price

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer        Our top of the range electromechanical mandrel bender, designed for multi-plain higher volume bending.
  • The NCE-2 mandrel bender machine has 3-axis controls, 2 are NC and 1 is manual. Like the NCE-1 the machine comes as standard with a 25 program x 10 bend memory, but unlike the NCE-1 the NCE-2 allows you to program the plane-of-bend for each bend angle as well. When the mandrel pipe bending machine is running and the start button is pressed, the plane-of-bend carriage rotates the tube to the right plane before the bending starts, this happens between all bend angles.
  • The 3rd axis, the feed axis (X), is controlled with an adjustable stop system. Manually, the operator pulls the carriage down a metered track and to the required stop, this feature means with the NCE-2 mandrel bender machine you can control the bend, rotation (plane) and feed axis and the standard features hydraulic mandrel extractor, pressure die and pressure die assist ensures a high-quality bend too.
  • 1-axis NC control
  • Memory can store 25 programs x 10 bends - (Y)
  • Sequential flip stop axis control
  • Fully hydraulic clamping
  • Hydraulic mandrel extractor
  • Hydraulic pressure die
  • Hydraulic pressure die assist
  • Available in 35, 60, and 90mm capacities

ITEM: Mandrel Bender Machine MANUFACTURER: BAILEIGH MODEL: MB-35NCE-2


OPTIONAL ITEMS: Split die system Automatic mandrel lubrication Additional useful bed length (1 metre increments)

Specifications

ManufacturerBaileigh Industrial
ModelMB-35NCE-2
ConditionNew
Stock NumberMB-35NCE-2
Max Tube O.D (Mild Steel)35 x 3mm
Max Tube O.D (SS)30 x 2mm
Max Square Tube (Mild Steel)30 x 30 x 2mm
Max Bend Angle190°
Maximum Center Line Radius110mm
Maximum Useful Length3000mm
Bending DirectionClockwise
Power Requirements400V, 50Hz, 3 Phase
Motor5.6Kw
Dimensions185" x 40" x 52" 4700 x 1000 x 1320mm
Weight2,535 lbs. (1150kgs)
