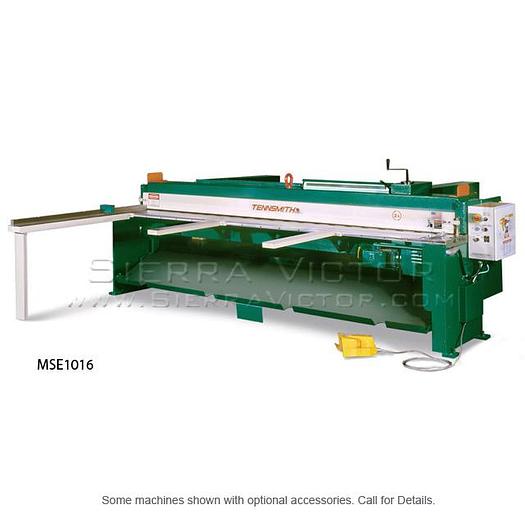

TENNSMITH Mechanical Shear with Performance Package-FC MSE1016-FC

TENNSMITH Mechanical Shear with Performance Package-FC MSE1016-FC

$29,750

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer TENNSMITH Mechanical Shear with Performance Package-FC MSE1016-FC (Front Return Material System and Front Return Material Cart) ITEM: 10' (121") x 16 ga Mechanical Shear with Performance Package-FC MANUFACTURER: TENNSMITH MODEL: MSE1016-FC MADE IN USA TENNSMITH'S MSE Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2X-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only tow rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute. The MSE616-R / MSE1016-R shear is standard in a "Performance Package-R" configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, rear material return air operated sheet support system, and part counter. The MSE616-F / MSE1016-F shear is standard in a "Performance Package-F" configuration. The Performance Package includes: a four foot squaring arm, a pair of front support arms, front material return air operated sheet support system, and part counter. The MSE1016 - FC includes all the features of the MSE1016-F, but also includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking. Numerous options are available for the MSE Series. STANDARD EQUIPMENT: Four-edge, high carbon, high chrome blades Self-leveling hold down bar with neoprene insert Single, continuous and jog stroke cycles Motor reverse switch Precision-machined table Dual inch/metric inlaid bed scales Non-metallic gibs. OPTIONAL ITEMS: Single Phase Electrics: ADD $1,595 Wired for CSA Canadian Electrical Standard: ADD $370 82605: MSE1016 High Carbon High Chrome 4 Edge per set: $1,525 82515: Additional Flip-up Stops for Squaring Arm (each): $220 82520: Front Support Arms Pair: $295 82580: Stroke Counter (Electro-Mechanical): $325 82525: Protractor Attachment: $650 83895: Digital Readout for 2x-F Back-gauge System: $1,050 82505: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,125 82510: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,530 The MSE Performance Package Includes: Air-operated sheet support system, F or R: "F" is a Front Return Material System via material tray located under the shear table. "R" is a Rear Return Material System "FC" Front Return Material System and includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking. Five-foot squaring arm Pair of Front support arms

Specifications

ManufacturerTennsmith
ModelMSE1016-FC
ConditionNew
Stock Number82445
Maximum shearing capacity, Mild Steel16 gauge/1.6mm
Maximum shearing capacity, Stainless Steel20 gauge/1.0mm
Maximum cutting length121" / 3,073mm
Back gauge range30" / 762mm
Strokes per minute, full length40
Motor - 230/460V, 3-Phase, 60Hz3 HP
Number of hold downsSolid BAR
Floor space, gauges in position140" x 69" x 50"
Shipping Weight:4,150 lbs. / 1,886kg
