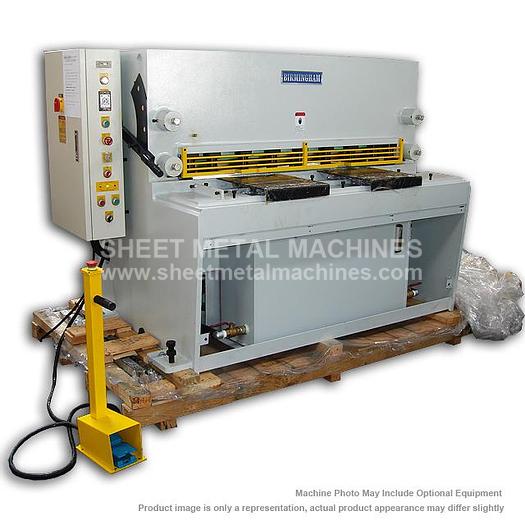

BIRMINGHAM Heavy Duty Hydraulic Shear H-0665

BIRMINGHAM Heavy Duty Hydraulic Shear H-0665

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer BIRMINGHAM 6' x 1/4" Heavy Duty Hydraulic Shear H-0665 MADE IN TAIWAN Well balanced and sturdy welded machine all steel frame provides constant stability and rigidity The centralized hydraulic logical system offers the best performance with a quiet hydraulic pump Independent hydraulic pressure hold-downs synchronized with upper blade, ensuring the workpiece is securely clamped at the moment of cutting High grade carbon/chrome alloy steel blades ensure maximum accuracy cutting and longer blade lide, 60hrc hardened. Easy to utilize blade gap setting (BGA) Hydraulic adjustable rake angle design is a standard feature for all models, rake angle is hydraulically variable adjustable with gauge selection indicators, minimizing bowing and twisting Adjustable cutting length and stroke Shadow line lighting covering full length of worktable, this is very helpful to operator for positioning and shearing workpiece Worktable mounted with ball transfer type plates, for easier loading and moving workpiece Full-length and full view safety finger guard, to protect operator from cutting hazard Removable foot remote pedal is fitted with safety protection, the upper blade beam will rise to top position immediately. On removal of foot from the pedal All motors and pumps are overload protected Jog, single, or continuous cutting operation modes

STANDARD ACCESSORIES: Blades 24" Manual Back Gauge 40" Front Support Arm 40" Squaring Arm Finder Guard Foot Pedal Shadow Line Lighting

OPTIONAL ITEMSS: CALL FOR PRICE Angle gauge Single axis, NC programmable 32" power back gauge. Pneumatic-type thin sheet supporter Power back gauge with lifting function 60"/80"/120" front support arm 60"/80"/120" squaring arm with dual scale


Stock NumberH-0665
Cutting Capacity6'
Mild Steel1/4"
Stainless Steel7 GA
Blade Length6' 4"
Strokes Per Minute (S.P.M.)26-40
Hold-Downs Number11
Hold-Downs Pressure (Tons)10.1
Front Support (Inch)40
Back Gauge (Inch)24
Top Blade Rake AdjustmentHydraulic Adjustment Rake Angle & Blade Clearance Adjust
Top Blade Rake Angle1/2 - 2°
Motor (HP)15
Oil Tank Capacity (Gal)40
Dimensions approx.130"x48"x65"
Net Weight (lbs)10,000
