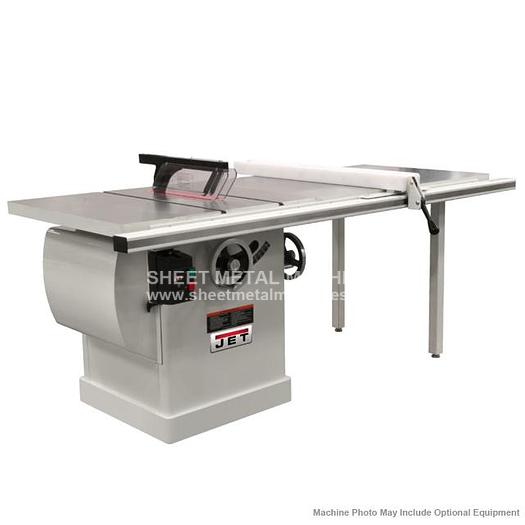

JET JTAS-12-DX Xacta Saw 5HP 1PH 708546PK

JET JTAS-12-DX Xacta Saw 5HP 1PH 708546PK
$4,299.99
Description
Please note: many products ship straight from manufacturer JET JTAS-12-DX 12" Xacta Saw, 5HP 1PH 708546PK With a riving knife and 80” of solid cast iron work surface, this saw will see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. The JTAS-12-DX also features a maximum rip of 14” left of the blade, giving you more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed by JET’s industry-leading 5-year warranty and knowledgeable customer service professionals. Riving knife maintains close blade proximity to reduce chance of kickback 80” of solid cast iron provides a massive work surface Poly V-Belt increases efficiency and reduces slipping and vibration Collection shroud around the blade and integrated hose improve dust collection Integrated arbor lock is accessed from table top for rapid blade change External tool storage for the fence and miter gauge 40-1/2” fence provides greater stability and better support when ripping Dado insert included Maximum rip left of the blade is 14" Removal of blade guard, pawls and riving knife takes only seconds
ITEM: 12" Xacta Saw, 5HP 1PH MANUFACTURER: JET MODEL: JTAS-12-DX PART# 708546PK
Specifications
Manufacturer | Jet |
Model | 708546PK |
Condition | New |
Stock Number | 708546PK |
Style (Type) | Cabinet |
Blade Diameter (In.) | 12 |
Arbor Diameter (In.) | 1 |
Arbor Speed (RPM) | 4300 |
Maximum Depth of Cut (In.) | 4 |
Maximum Depth of Cut at 45 Degrees (In.) | 2-7/8 |
Maximum Rip Left of Blade (In.) | 14 |
Maximum Rip Right of Blade (In.) | 50 |
Maximum Diameter of Dado (In.) | 8 |
Maximum Width of Dado (In.) | 13/16 |
Table Type | Cast Iron |
Table Size (L x W) (In.) | 31-1/2 x 24 |
Table Size with Extension (L x W) (In.) | 31-1/2 x 80 |
Miter Gauge Type | T-Slot with Stops |
Dust Collection Minimum CFM Required (CFM) | 350 |
Dust Port Outside Diameter (In.) | 4 |
Motor Power (HP) | 5 |
Motor Phase (PH) | 1 |
Motor Voltage (V.) | 230 |
Prewired Voltage (V.) | 230 |
Motor Amps | 20 |
