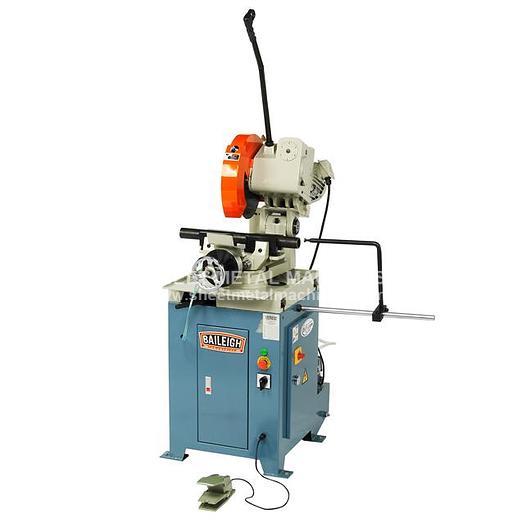

BAILEIGH Manual Cold Saw CS-350P

BAILEIGH Manual Cold Saw CS-350P

$6,395

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer Ever wish you had an extra hand to help clamp material in a vise? This saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production.
  • Accepts a 14” blade.
  • Maximum capacity of 4.25” round tube at 90°.
  • 2 blade speeds: 26 or 52 rpm.
  • Choice of rpm lets you switch speeds to fit your material and get a better cut.
  • Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting.
  • 4 hp motor runs on 220-volt 3-phase power.
  • Air-powered vise lets you clamp the material by tapping the included foot pedal.
  • Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough!
  • Stop rod ensures that you’re cutting a repeatable length each time, perfect for production runs.
  • Movable safety guard comes standard.
  • Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years.
  • Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height.
  • Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts.
  • We keep replacement parts in stock for fast shipping.
  • Covered by a 1-year parts warranty.
  • Our team of reps—all with hands-on machine experience—are here to provide lifetime technical support by phone.
  • Recommended for:Marine rails
  • Playground equipment
  • Hand railing
  • Chassis applications
  • Many more fabrication cutting jobs

ITEM: 14" Manual Cold Saw MANUFACTURER: BAILEIGH MODEL: CS-350P

Specifications

ManufacturerBaileigh Industrial
ModelCS-350P
ConditionNew
Stock NumberCS-350P
Country of ManufactureTaiwan
Max. Blade Diameter14"
OperationManual with Pneumatic Vice
Round Solid at 45°1.575"
Square Tube at 45°2.953" x 2.953"
Round Tube at 45°2.953"
Rectangle Tube at 45°2.953" x 2.362"
Round Solid at 90°2.362"
Rectangle Tube at 90°4.25" x 3.5"
Square Tube at 90°4.25" x 4.25"
Round Tube at 90°4.331"
Coolant SystemYes
Slotting CapableYes, Left and Right
Vice StyleDual Action, Self Centering
Max. Vice Opening6.5"
Head StylePivot
Arbor Size1.26"
Motor4.0 / 3.0 hp
Power220V / 3-phase
Shipping Dimensions60" x 44" x 48"
Shipping Weight834 lbs.
