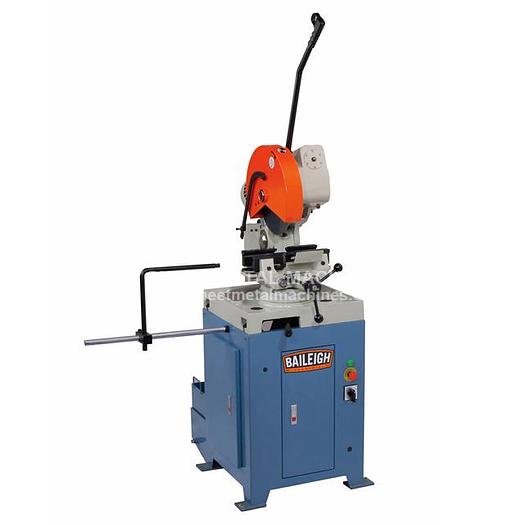

BAILEIGH Circular Cold Saw CS-350M

BAILEIGH Circular Cold Saw CS-350M

$6,085

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer The CS-350M metal cutting saw is the best cold saw on the market for its price. It makes pristine cuts and includes features you won’t find on competing saws, like a self-centering vise and coolant system.
  • Accepts a 14” blade.
  • 4.25” round tube capacity at 90°.
  • Miters 45° right and 90° left, perfect for slotting applications.
  • 2 blade speeds: 26 and 52 rpm. Switch between them to cut a variety of materials.
  • Robust 4 hp motor runs on 220-volt 3-phase power.
  • All-metal gears in direct-drive head are ground and hardened for reliability.
  • American-style vise keeps the material perfectly centered with the blade for clean, correct cuts.
  • Backlash adjustment maintains tight tolerances and keeps “play” in the gearbox to a minimum.
  • Rigid cast iron base keeps vibrations to a minimum so that the saw cuts accurately and reliably.
  • Heavy molded steel stand brings the saw up to a comfortable cutting height.
  • Industrial-grade flood coolant system ensures a long lifespan of use for both blades and saw and ensures high cut quality.
  • Coolant system lubricates the blade, reducing strain on the operator.
  • Replacement parts are in stock for quick deliveries.
  • We cover this circular cold saw machine with a 1-year parts warranty.
  • You can count on lifetime technical support by phone from our team of experienced metalworkers. Call whenever you need help.
  • Recommended for:Marine rails
  • Playground equipment
  • Hand railings
  • Various chassis applications
  • Other fabrication cutting jobs

ITEM: 14" Manually Operated Cold Saw MANUFACTURER: BAILEIGH MODEL: CS-350M

Specifications

ManufacturerBaileigh Industrial
ModelCS-350M
ConditionNew
Stock NumberCS-350M
Country of ManufactureTaiwan
OperationManual
Head Miter90° Slotting, 45° Left / 45° Right
Round Solid at 45°1.575"
Square Tube at 45°2.953" x 2.953"
Round Tube at 45°2.953"
Rectangle Tube at 45°2.953" x 2.362"
Round Solid at 90°2.362"
Rectangle Tube at 90°4.25" x 3.5"
Square Tube at 90°4.25" x 4.25"
Round Tube at 90°4.331"
Coolant SystemYes
Slotting CapableYes, Left and Right
Vice StyleDual Action, Self Centering
Max. Vice Opening6.5"
Head StylePivot
Arbor Size1.26"
Motor4.0 / 3.0 hp
Blade SpeedTwo Speeds, 26 / 52 (rpm)
Power220V / 3-phase
Shipping Dimensions60" x 44" x 68"
Shipping Weight820 lbs.
