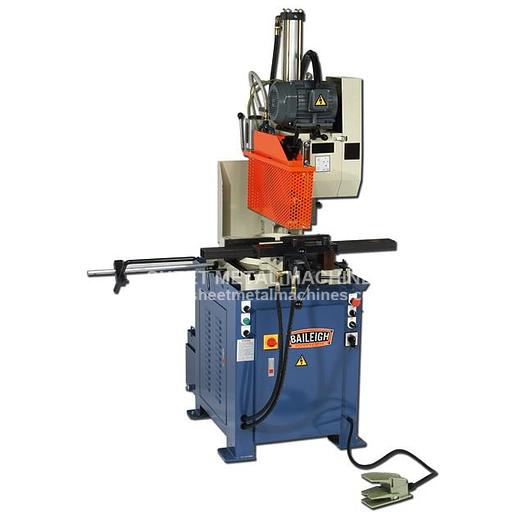

BAILEIGH Semi-Automatic Column Coldsaw CS-C425SA

BAILEIGH Semi-Automatic Column Coldsaw CS-C425SA


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Semi-Automatic Column Coldsaw CS-C425SA Built from steel and cast iron, this semi-automatic cold saw will last for decades. All industrial-grade components, like the gearbox, hydraulics, and coolant system, keep cuts accurate.

  • Accepts a maximum 17” blade.
  • Miters 45° left and 60° right, perfect for angle iron and channel.
  • You can switch between 4 cutting speeds (35, 60, 70, and 120 rpm) to fit your material.
  • 5 hp blade motor runs on 220-volt 3-phase power.
  • Cutting head rides up and down heavy slideway tracks, hardened and ground to offer the most accurate cuts in the industry.
  • Blade head allows you to adjust the descent speed.
  • Adjustable gibs on the column give the slideways a long lifetime of use.
  • You can set a hard vertical stop so that the blade only cuts so far down—great for faster cycle times.
  • Whole carriage, including motor and blade, will slide up or down with the press of a button so you can get your material in there.
  • Hydraulic downfeed movement of the cutting head offers precise cutting pressure through the cycle, which extends blade life.
  • Simple to operate: put the material against the stop rod and press the foot pedal to start cutting.
  • Hydraulic self-centering vise clamps the material, then the saw starts its descent.
  • After the cut, the blade automatically shuts off and returns to home position.
  • Choose manual or semi-automatic mode by turning a dial.
  • Metered stop rod lets you easily make repeatable lengths for production runs.
  • Rugged steel base reduces vibrations to produce burr-free cuts like only a cold saw can.
  • Industrial-grade coolant pump cools the blade and washes chips away.
  • Flood coolant system prolongs blade and machine life, plus it helps the blade give you cuts with smooth edges.
  • Oiler system lets you pump a lever to release oil from the reservoir and keep the head moving up and down without catching.
  • Comes with a box of tools for maintenance and blade changeovers.
  • Replacement parts are in stock for fast shipments.
  • We cover this vertical column cold saw with a 1-year parts warranty.
  • Lifetime technical support by phone means you can contact our team of reps—all with hands-on machine experience—any time you need help.
  • Recommended for: Large-scale production at any full-service fabrication or machine shop.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberBA9-1002633
Country of ManufactureTaiwan
Max. Blade Diameter17" - 14" standard
Head Miter45° Left / 30° Right
Round Solid at 45°2.36"
Square Tube at 45°3.93" x 3.93"
Round Tube at 45°4.5"
Rectangle Tube at 45°3.93" x 1.96"
Round Solid at 90°2.75"
Rectangle Tube at 90°4.72" x 1.96"
Square Tube at 90°4.33" x 4.33"
Round Tube at 90°4.92"
Coolant SystemYes
Vice StyleSingle Action
Max. Vice Opening6"
Head StyleColumn
Arbor Size1.26"
Blade SpeedFour-Speeds, 35 / 70 & 60 / 120 (rpm)
Power220V / 3-phase
Shipping Dimensions58" x 33" x 84"
Shipping Weight1,870 lbs.
