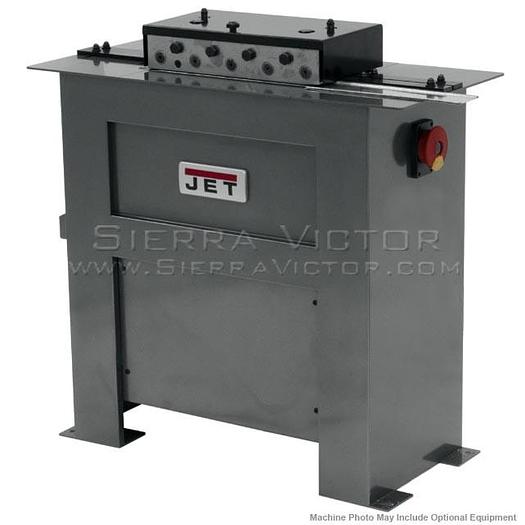

JET LF-20 20GA Pittsburgh Lockformer 756090

JET LF-20 20GA Pittsburgh Lockformer 756090


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET LF-20 20GA PITTSBURGH LOCKFORMER, 756090 The JET Lockformer is all about durability. The all steel forming head, case hardened steel forming rolls and needle nose roller bearings contribute to years of precision performance. The heavy-duty undercarriage helps prevent damage during forklift transportation. All steel forming head with hardened and ground shafts Case hardened steel forming rolls, machine cut gear for long use Needle nose roller bearings for years of precision use Reinforced undercarrige for damage free lifting with a fork lift CSA/US: Following strict guidelines and electrical requirements, this JET Lockformer is CSA/US certified Magnetic Switch for motor protection Tool less roller cover panel for easy access Onboard tool storage tray

ITEM: 20 ga. Pittsburgh Type Lockformer MANUFACTURER: JET MODEL: LF-20 PART# 756090


STOCK# 756091: Double Seam Roll Set for LF-20: $609 STOCK# 756092: Drive Cleat Roll Set for LF-20: $609


Stock Number756090
Mild Steel Capacity (Gauge)20 (max) 26 (min)
Speed (FPM)25
Depth of Pocket: Width of hammer-over the edge (Adjustable)5/16 to 3/8
Motor (HP)1-1/2HP, 115V, Single Phase
Overall Height (in.)32
Overall Dimensions (L x W x H) (In.)36 x 16-1/2 x 36-1/2
Weight (Lbs.)330
