JAG Flanger FLANGER 1.6

JAG Flanger FLANGER 1.6

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

Ships direct from the factory. Lead time 6 to 8 weeks.

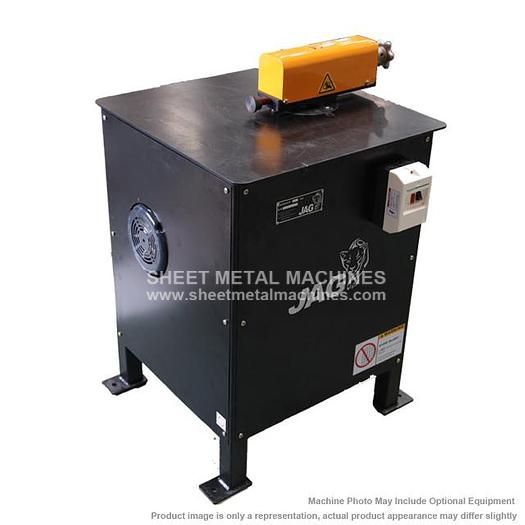

JAG Flanger FLANGER 1.6 Turn up the power and automatically follow any edge—straight or curved. The FLANGER 1.6 automatically follows any edge—curved or straight. Use the convenient table slot to turn up a “starting flange” and let it go! A calibrated dial can be set for radii as small as 3-1/8″ (2″ when auto-guide is deactivated). Machine can be set to produce either of two flange heights—approximately 3/8″ (9.5 mm) or 1/4″ (6.4 mm). A non-releasing type head is suitable for open end fittings, straight and irregular curves. Automatically flange 16 to 24-gauge (.55 mm or 1.61 mm) material at speeds of 18 fpm (5.5 m/min). Standard with JAG quality construction, this machine has an industrial motor; heavy 3/4” (19mm) chassis plate; and an arc-welded steel stand protected with top-quality primer and paint finish.

Specifications

ManufacturerJAG
ModelFLANGER 1.6
ConditionNew
Stock NumberFLANGER 1.6
Capacity16 – 24 gauge (0.55 – 1.61 mm)
Depth of Pocket3/8” (9.5 mm) or 1/4” (6.4 mm)
Speed18 fpm (5.5 m/min)
Motor2 HP (1.5 kw) – 115/230 volts, 60 cycle, single phase, AC, 1800 RPM
Dimensions26”L x 24W” x 38”H (660 x 610 x 965 mm)
Weight300 lbs. (136 kg)
