JAG RollFormer SEAMER 0.7

JAG RollFormer SEAMER 0.7

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

Ships direct from the factory. Lead time 6 to 8 weeks.

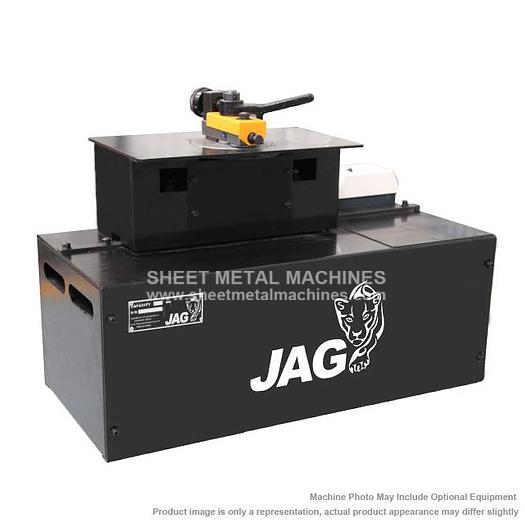

JAG RollFormer SEAMER 0.7 Compact and light enough to be taken right to the job, yet costeffective enough to be a stand-by machine for your shop. The SEAMER 0.7 Rollformer is built to deliver heavy-duty service. With 5 forming stations and 1 inboard forming position, the SEAMER 0.7 is ideal for 24 gauge (0.70 mm) galvanized steel or lighter. The forming chassis is constructed out of 1/2” (12.7 mm) steel plate. An optional Auto-Guide Power Flanger attachment is available – automatically follows any edge, straight or irregular, while forming a 7/32” (5.5 mm) outside flange height. Forms Pittsburgh lock profile and right-angled flange. Handles radii down to 3-1/4″ (82.5 mm). Lock out automatic feature to run radii down to 1-3/8" (35 mm) at speeds of 15-18 fpm (5-6 m/min).


OPTIONAL ITEMS: CALL FOR PRICE Optional Auto-Guide Power Flanger attachment: automatically follows any edge, straight or irregular, while forming a 7/32” (5.5 mm) outside flange height.

Specifications

ManufacturerJAG
ModelSEAMER 0.7
ConditionNew
Stock NumberSEAMER 0.7
Capacity24 – 28 gauge (0.5 – 0.7 mm)
Depth of Pocket5/16” (8 mm) – uses 1” (25.4 mm) of material
Speed30 – 35 fpm (9 – 11 m/min)
Motor1 HP (0.75 kw) – 115 volts, 60 cycle, single phase, AC, 1800 RPM
Dimensions30”L x 13.5W” x 20”H (760 x 340 x 510 mm)
Weight191 lbs. (87 kg)
