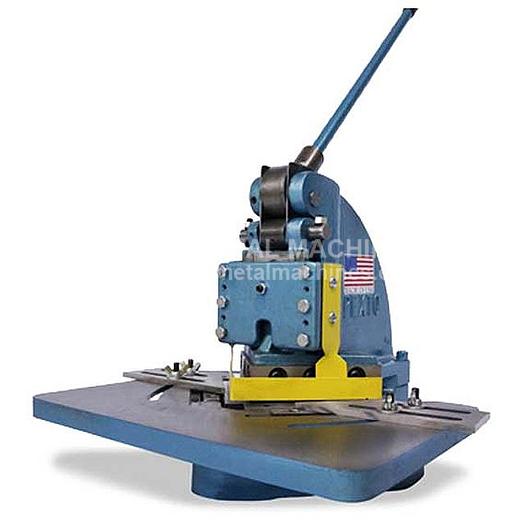

ROPER WHITNEY Bench Notcher with Hi-Speed Blades NO. PS66

ROPER WHITNEY Bench Notcher with Hi-Speed Blades NO. PS66

$1,172

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Bench Notcher with Hi-Speed Blades NO. PS66 ITEM: 16 ga. Bench Notcher with Hi-Speed Blades MANUFACTURER: ROPER WHITNEY MODEL: NO. PS 66 PART# 145070661 The only machine that combines notching and coping in one compact unit. The machine may also be used for shearing strip and box corner tab notching. A machine designed to handle the many small, diversified jobs in the sheet metal shop. The PS-66 features a work table with edges machined squared for accurate and convenient gauge setting, reversible upper blades, 4-edge lower blades, and shatter-proof finger guard. No. PS-66 is a notcher coper and shear all in one. This machine is hand operated, bench or floor mounted and has adjustable gauge stops, replaceable blades and finger guards. Blades may be mounted for conventional splay cutting, starting at the outside edges, shearing to apex, or for pierce cutting, starting at apex and shearing to outside edges. Pierce cutting permits shearing inside the blank and coping. The PS-66 can cut a full 6″ x 6″ corner notch in one stroke. Saves the 6″ x 6″ cut out blank. By removing one frame bolt, the PS-66 will shear or square 6″ material of any length. MADE IN USA PART # ITEM 239006010 Floor Stand ( Shipping weight - 297 lbs. ): $508 250006604K Hi-Speed Blades - Upper Blade Set: $209 250006603K Hi-Speed Blades - Lower Blade Set: $209

Specifications

ManufacturerRoper Whitney
ModelNO. PS66 HSB
ConditionNew
Stock Number145070661
Maximum Shearing Capacity - Mild Steel (Splay-cut)16 ga.
Maximum Shearing Capacity - Mild Steel (Pierce-cut)18 ga.
Maximum Notch6" x 6" x 90°
Stroke3/4"
Shearing Width (any length)6"
Dimensions23" x 24" x 21"
Weight200 lbs.
Tool Height (B-T) (less handle)17"
Tool Width (L-R)18"
Tool Depth (F-B)17"
Tool Handle Length24"
Floor Stand Height30"
Floor Stand Width16"
Floor Stand Depth20"
