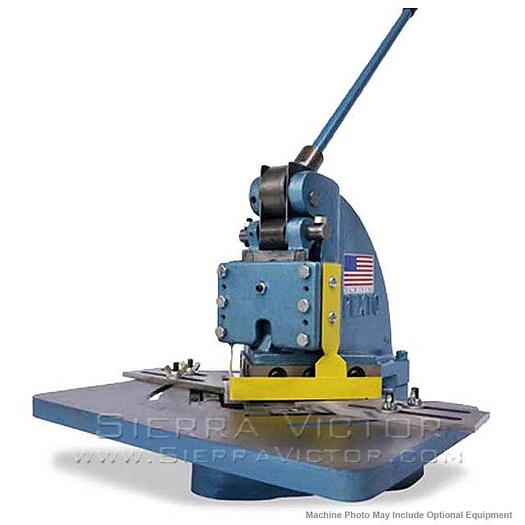

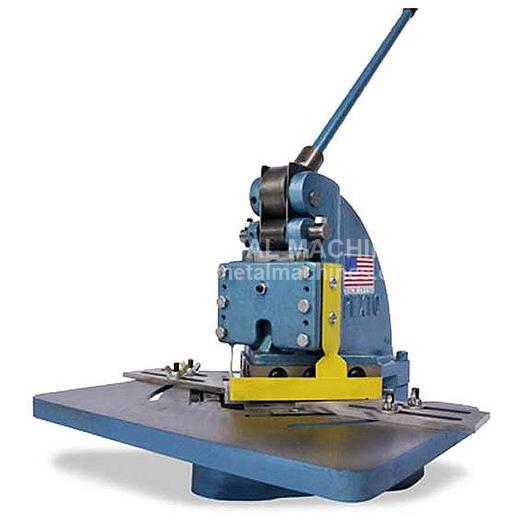

ROPER WHITNEY Bench Notcher with Box Flange Blades NO. PS66

ROPER WHITNEY Bench Notcher with Box Flange Blades NO. PS66

$1,268

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Bench Notcher with Box Flange Blades NO. PS66 ITEM: 16 ga. Bench Notcher with Box Flange Blades MANUFACTURER: ROPER WHITNEY MODEL: NO. PS 66 PART# 145070662 The only machine that combines notching and coping in one compact unit. The machine may also be used for shearing strip and box corner tab notching. A machine designed to handle the many small, diversified jobs in the sheet metal shop. The PS-66 features a work table with edges machined squared for accurate and convenient gauge setting, reversible upper blades, 4-edge lower blades, and shatter-proof finger guard. No. PS-66 is a notcher coper and shear all in one. This machine is hand operated, bench or floor mounted and has adjustable gauge stops, replaceable blades and finger guards. Blades may be mounted for conventional splay cutting, starting at the outside edges, shearing to apex, or for pierce cutting, starting at apex and shearing to outside edges. Pierce cutting permits shearing inside the blank and coping. The PS-66 can cut a full 6″ x 6″ corner notch in one stroke. Saves the 6″ x 6″ cut out blank. By removing one frame bolt, the PS-66 will shear or square 6″ material of any length. MADE IN USA PART # ITEM 239006010 Floor Stand ( Shipping weight - 297 lbs. ): $508 250006606K Box Flange Blades - Upper Blade Set: $287 250006605K Box Flange Blades - Lower Blade Set: $287

Specifications

ManufacturerRoper Whitney
ModelNO. PS66 BFB
ConditionNew
Stock Number145070662
Maximum Shearing Capacity - Mild Steel (Splay-cut)16 ga.
Maximum Shearing Capacity - Mild Steel (Pierce-cut)18 ga.
Maximum Notch6" x 6" x 90°
Stroke3/4"
Shearing Width (any length)6"
Dimensions23" x 24" x 21"
Weight200 lbs.
Tool Height (B-T) (less handle)17"
Tool Width (L-R)18"
Tool Depth (F-B)17"
Tool Handle Length24"
Floor Stand Height30"
Floor Stand Width16"
Floor Stand Depth20"
