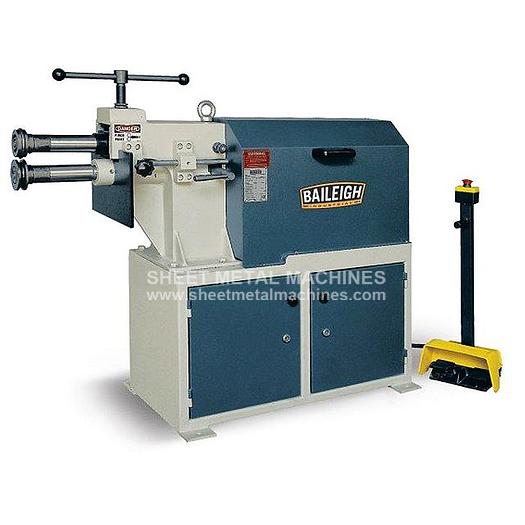

BAILEIGH Heavy Duty Bead Rolling Machine BR-12E-10

BAILEIGH Heavy Duty Bead Rolling Machine BR-12E-10

$6,295

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Heavy Duty Bead Rolling Machine BR-12E-10 Built with a welded plate steel frame, this power bead roller can tackle up to 12 gauge mild steel. Equipped with foot pedals, it’s easy to operate and perfect for heavy industrial applications.


  • 2 hp motor runs on 220-volt single-phase power.
  • Industrial-grade gearbox comes with a brake to maintain accuracy.
  • 10” throat depth is suitable for working on the edges of material.
  • Foot pedal controls leave your hands free to guide the material. You only need one operator.
  • Forward and reverse pedals help with delicate patterns that you want to go over.
  • Movable steel plate depth stop provides a solid surface to guide you and produce straight beads.
  • Top handle moves the top shaft vertically so that you can easily open it up and get the material in there.
  • Includes 4 tooling profiles: round, shear, step, crimp rolls.
  • Cabinet built into the base offers convenient storage for tooling.
  • Adjustable depth on the bottom lets you get a custom profile by offsetting your rolls.
  • Disengage the black handle to push the shaft back and forth and get your offset.
  • Robust, fully welded steel frame ensures many years of accurate, reliable metal forming even at maximum capacity.
  • Covered by a 1-year parts warranty.
  • This industrial bead roller includes lifetime technical support by phone from a team of reps with hands-on metalforming experience.
  • Tooling and replacement parts are usually in stock, so we can shop them to you quickly.

ITEM: 12 ga. Heavy Duty Bead Rolling Machine MANUFACTURER: BAILEIGH MODEL: BR-12E-10

Specifications

ManufacturerBaileigh Industrial
ModelBR-12E-10
ConditionNew
Stock NumberBR-12E-10
Motor2 HP
Max. Thickness (Mild Steel)12 ga.
Roll Diameter3.77"
Throat Depth11"
StandIncluded
Adjustable Depth StopIncluded
Power220 Volt, Single Phase
Shipping Weight770 lbs.
Shipping Dimensions56" x 22" x 45"
