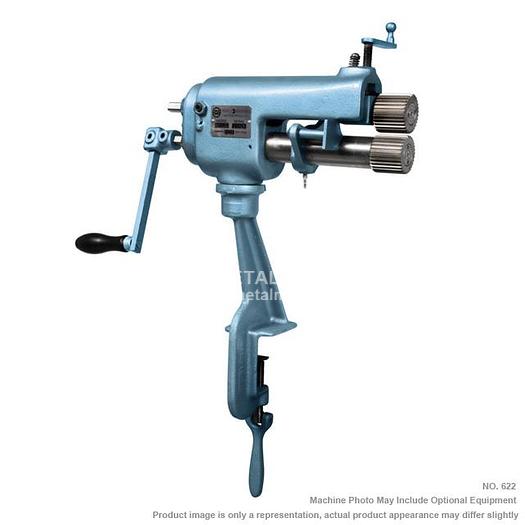

ROPER WHITNEY Combination Rotary Machine without Rolls NO. 622LR

ROPER WHITNEY Combination Rotary Machine without Rolls NO. 622LR

$984

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY Combination Rotary Machine without Rolls NO. 622LR PEXTO forming machines included in this section offer a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, burring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of their flexibility. Most are portable and may be set up at the job with a clamp-on base. The No. 622 Series is equipped with the addition of a 7″ deep throat for additional forming capabilities, such as furnace collar edging. The Model No. 622 includes a set of rolls (A, C, D, E & F) and gauges or may be ordered without rolls as Model No. 622LR*. A number of rolls may be ordered separately from the roll chart to use with this machine. No. 622 Series machines include No. 975 clamp-on offset base. * Other versions available with rolls for specific purposes. MADE IN USA

ITEM: 24 ga. x 7" Combination Rotary Machine without Rolls MANUFACTURER: ROPER WHITNEY MODEL: NO. 622LR PART# 164006220


OPTIONAL ITEMS:

PART #350000001: "A" - 1/8" Turning Roll - Upper: $45 350000002: "A" - 1/8" Turning Roll - Lower: $45 350000049: "B" - 3/16" Turning - Upper: $45 350000050: "B" - 3/16" Turning - Lower: $45 350000003: "C" - Burring Roll - Upper: $45 350000004: "C" - Burring Roll - Lower: $45 350000005: "D" - Wiring Roll - Upper: $45 350000006: "D" - Wiring Roll - Lower: $45 350000051: NO.1 Elbow Edging Roll - Upper: $45 350000052: NO.1 Elbow Edging Roll - Lower: $45 350000053: "L" - Flanging Roll - Upper: $45 350000054: "L" - Flanging Roll - Lower: $45 350000055: "M" - Flattening Roll - Upper: $62 350000056: "M" - Flattening Roll - Lower: $62 350000007: "E" - Crimping Roll - Upper: $57 350000008: "E" - Crimping Roll - Upper: $57 350000009: "F" - 3/4" Ogee Bead Roll - Upper: $51 350000010: "F" - 3/4" Ogee Bead Roll - Lower: $51 350000029: "G" - 1/4" Single Bead Roll - Upper: $51 350000030: "G" - 1/4" Single Bead Roll - Lower: $51 350700068: "H" - Slitting Cutters - Upper: $124 350700069: "H" - Slitting Cutters - Lower: $124 350000067: "N" - Furnace Collar Edging - Upper: $86 350000068: "N" - Furnace Collar Edging - Lower: $86 350000069: "N" - Furnace Collar Edging ( 2 required ): $86 350000076: "P" - Offset Roll - Upper: $102 350000077: "P" - Offset Roll - Lower: $102 259200032: Standard Gauge - CALL FOR PRICE 259200045: Curved Gauge - CALL FOR PRICE 259200060: Extension Gauge - CALL FOR PRICE 259200093: Throat Gauge - CALL FOR PRICE 239009750: NO. 975 Base - 11 lbs. - CALL FOR PRICE

Specifications

ManufacturerRoper Whitney
ModelNO. 622LR
ConditionNew
Stock Number164006220
Catalog No.164006220
Capacity24 ga.
Throat Depth7"
Distance between Shart Centers2"
Ratio Gearing1:1
Dimensions19" x 10" x 9"
Weight45 lbs.
