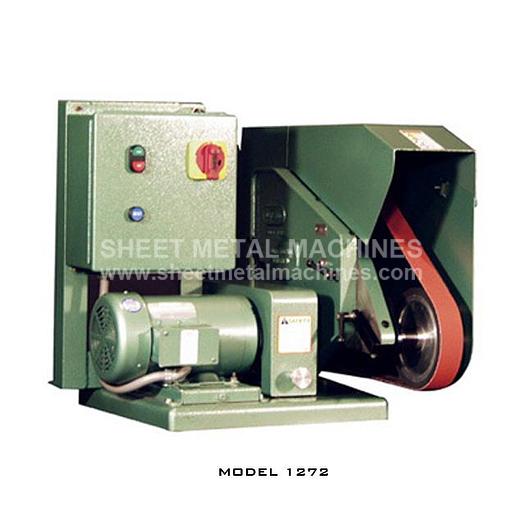

BURR KING Model 1272 Multi Speed Grinder

BURR KING Model 1272 Multi Speed Grinder

$5,098 : For other configurations - Please Call for Price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BURR KING Model 1272 2" x 72" Multi Speed Grinder

  • MADE IN USA
  • Model 1272 provides internal and radius grinding attachments as well as yoke attachments giving users a wide range of belt and wheel sizes.
  • 1272 has 16 standard selectable speeds, 680, 900, 1100, 1130, 1440, 1690, 1580, 1800, 2260, 2710, 2530, 2820, 3610, 3950, 4510, 6320 SFPM
  • Model 1272 contact wheels range from 3/8", 9/16", 3/4", 1", 1-1/2", 2", 3", 4", 5", 7",8", and 10", by using yoke and special attatchments.
  • Part No. 1401 1" Arm Internal and radius grinding attchment showing 1` x 72` belt optional wheel dia. Sizes are: 9/16", 3/4", 1", 1-1/2" x 1" wide.
  • Part No. 1274 Yoke attachemt with standard 2" x 2" contact wheels. Backup platen is removable for contour and loose belt grinding.
  • Part No. 1277 2" Fork Arm 2" wide yoke attachment 2" x 72" belt. Wheel dia. 9/16", 3/4", 1", 1-1/2"
  • Step Pulleys Step pulleys combined with optional size drive wheels allows 16 different speeds ranging from 677 S.F.P.M. to 6320 S.F.P.M.
  • Standard 72" belt, 1/2", 1" & 2" widths
  • Constant belt speed with rear wheel drive
  • Contact, slack, platen, workrest grinding
  • Multiple belt configurations
  • Heavy cast construction
  • Positive belt tracking
  • Quick belt change with adjustable tension
  • Variable speed range
  • Yoke attachment for platen and loose belt grinding
  • Adjustable nose for height
  • Pedestal is optional, not included.
  • Full safety belt guard
  • *Includes magnetic starter (NEMA 12) and controls without power cord.
  • CAUTION: Use proper eye, face, hand and body protection when using this or any other grinder.


Specifications

ManufacturerBurr King
Model1272
ConditionNew
Stock Number12100
Voltage/Phase120/1
With 1275 Yoke Assy.No
Horsepower1.5
Multi-Speed SFPM680-6,320
Hz60
Shipping Weight225 lbs.
