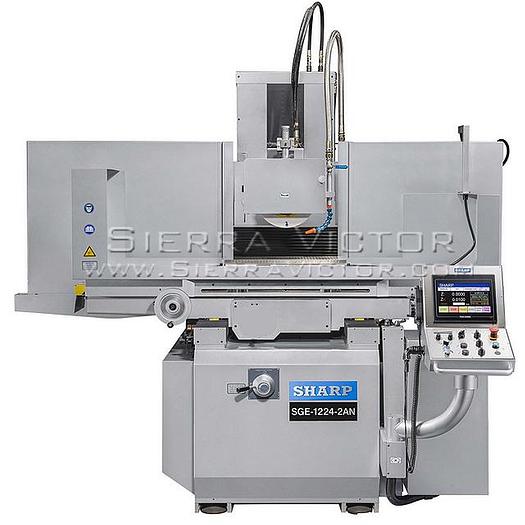

SHARP 2-Axis NC Surface Grinder SGE-1224-2NA

SHARP 2-Axis NC Surface Grinder SGE-1224-2NA

Contact us for price

orCall 386-304-3720


Please note: many products ship straight from manufacturer ITEM: 12" x 24" 2-Axis NC Surface Grinder MAKE: SHARP MODEL: SGE-1224-2NA


Stock NumberSGE-1224-2NA
Max. distance from table top to spindle center28"
Maximum longitudinal travel28" (700mm)
Maximum cross travel14" (360mm)
T-slot (NO x width)3 x 0.67 (3 x 17)
Auto feed range0.0001" - 0.4" (.0025-10.1 mm)
Rapid traverse feed rate10 ipm (254 mm/min)
Resolution of MPG0.0001" (0.0025mm)
Spindle speed1455/1755 rpm
Grinding wheel outside diameter x thickness12 x 2 (305 x 50)
Grinding wheel bore5 (127)
Cross feed AC servo0.5 HP
Vertical feed ( AC servo)0.5 HP
Weight (Approx)7,040 lbs. (3,200 kg)
