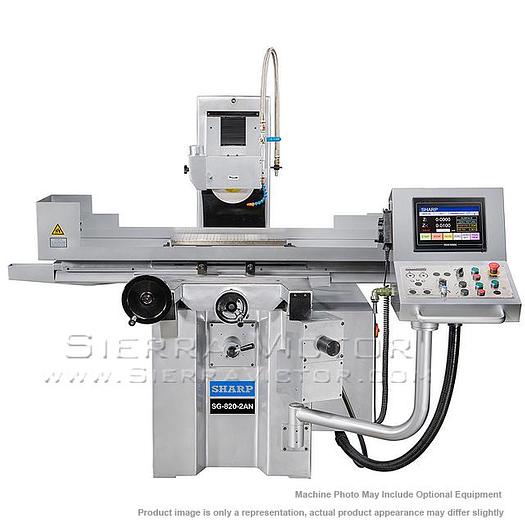

SHARP Automatic Surface Grinder with NC Downfeed SG-820-2AN

SHARP Automatic Surface Grinder with NC Downfeed SG-820-2AN

$33,045

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer SHARP 8" x 20" Automatic Surface Grinder with NC Downfeed SG-820-2AN CNC programmable downfeed system, Automatic cross feed (Y), and table feed (X) Featuring Tool Wear Compensation, .MPG (Electronic Handwheel) Advanced touch screen downfeed System 8” x 20” Table, 9.25” x 23.6” Travel Automatic Crossfeed Accurate Slot-Grinding Capability Hydraulic System for Table Travel 2 HP Spindle Motor – 3,420 rpm Double “V” Way Cross Travel One “V” One Flat Way Longitudinal Travel Hand Scraped and Turcit B Coated Ways STANDARD EQUIPMENT: Grinding Wheel (8” x 0.75” x 1.25”) KANETSU ELECTRO-MAGNETIC CHUCK W/ CONTROL Auto Lube System Coolant System w/ Paper Filter (25 Gal.) & Splash Guard Wheel Adapter/Flange Work Light Wheel Balancing arbor Diamond Dresser Microprocessor programmable touch screen down feed control Wired 220V or 440V. Please specify Tool Kit includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip screw driver, oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint. ITEM: 8" x 20" Automatic Surface Grinder with NC Downfeed MANUFACTURER: SHARP MODEL: SG-820-2AN CALL FOR PRICE: PART # ITEM SG-8-1 8” x 1.25” x 0.75” Wheel & Vari-Speed Wheel Head Control (220V) SG-8-2 8” x 1.25” x 0.75” Wheel & Vari-Speed Wheel Head Control (440V) KESL-2050/KT-115 8” x 20” Kanetsu Electro-Magnetic Chuck (Fine Pole) with Control LBP-820 8” x 20” Walker Electro-Magnetic Chuck (Fine Pole) with Control SG-08 Extra Wheel Adapter (Flange) SG-05 “Overhead” Manual Parallel Dresser BS-SG/SP Balance Stand DC Dust Collector CS&PF&MS Coolant System w/Magnetic Separator & Paper Filter (25 Gal) 220V/440V MCA40/PF Coolant System w/Magnetic Separator & Paper Filter (25 Gal) 380V (for International use) FG-SG820 Fagor 20i D.R.O. FG-40i-SG820 Fagor 40i D.R.O. AR-SG820 Acu-Rite 200S D.R.O. NW-SG820 Newall DP700 D.R.O. — Factory Installation – D.R.O *** ALL MAGNETIC CHUCKS INCLUDE FREE INSTALLATION *** *** (440V machines needs transformer for programmable micro control downfeed system.)

Specifications

ManufacturerSharp
ModelSG-820-2AN
ConditionNew
Stock NumberSG-820-2AN
Maximum Grinding Width8.7"
Maximum Distance - Table to Spindle Center15.7"
Maximum Longitudinal Travel23.6"
Maximum Cross Travel9.25"
Hand Feed per revolution2.7"
Continuous traverse feed47 ipm
Hand Feed per Revolution0.2"
Graduation of Hand Wheel0.0001”
Rapid feed15 ipm
Spark Out0-9 Passes
Spindle Speed3,420 rpm
Grinding Wheel Outside Diameter8"
Grinding Wheel Bore1.25"
Grinding Wheel Width0.5"
Floor Space (WxHxL)83” x 59” x 78”
Net Weight2,600 lbs
Wired for220V or 440V please specify
