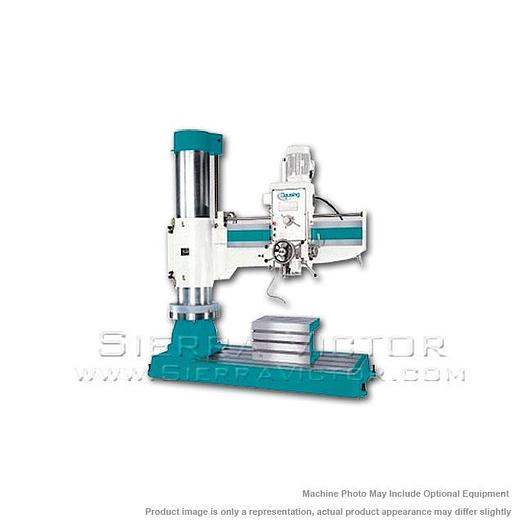

CLAUSING Radial Drill CL2000H

CLAUSING Radial Drill CL2000H

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer CLAUSING Radial Drill CL2000H ITEM: 78" Radial Drill MANUFACTURER: CLAUSING MODEL: CL2000H Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting. Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear. Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation. Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required) Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage. Coolant system CSA Electrics Standard Tool kit and manuals PART # ITEM CLS100 Large Tilt Table, 32X28X24 (CLS) CLS101 Small Tilt Table, 20X20X23 (CLS) CLS102 Extra Box Table, 39.3 x 31.5 x 19.6 (1 std on 2000H) CLS102A Extra Box Table, 23.6 x 17.5 x 14.9 (1 std on 720A - 920A) CLS102B Extra Box Table, 24.8 x 20.4 x 16.3 (1 std on 1100,1230H,1250H) CLS102C Extra Box Table, 24.8 x 19.6 x 19.6 (1 std on CLC1600H) CLS102D Extra Box Table, 27.5 x 19.6 x 15.7 (1 std on CL1600H) CLS102E Extra Box Table, 39.3 x 31.5 x 22 (1 std on 2500H) CLS-CE1 CE Electrics w/Spindle Guarding CL720-1230H CLS-CE2 CE Electrics w/Spindle Guarding CLC1250H&1600H CLS-CE3 CE Electrics w/Spindle Guarding CL1600H -2500 CLS-CSA1 CSA\UL Electrics CL720-920 CLS-CSA2 CSA\UL Electrics CL1100-1230H CLS-CSA3 CSA\UL Electrics CLC1250H-1600H CLS-CSA4 CSA\UL Electrics CL1600-2000 CLS-CSA5 CSA\UL Electrics CL2500 CLS-7 7.5Hp Main Spdl Mtr Upgrade CLC1600H (fac inst) CLS-10 10Hp Main Spdl Mtr Upgrade CL1600&2000 (fac inst) CLS-200 Auto Reverse Tapping Feature 4MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options CLS-200A Auto Reverse Tapping Feature 5MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options

Specifications

ManufacturerClausing
ModelCL2000H
ConditionNew
Stock NumberCL2000H
Drilling In Cast Iron2.75" (70mm)
Tapping In Steel1.97" (50mm)
Tapping In Cast Iron2.36" (60mm)
Boring In Steel5" (126mm)
Boring In Cast Iron7.28" (185mm)
Minimum (D)19.3" (490mm)
Spindle Head Travel (C)59.4" (1510mm)
Minimum (B)19.7" (500mm)
Arm Vertical Travel (A-B)43.3" (1100mm)
Arm Rotation (Right & Left)180°
Baseplate Working Surface
Width (K)31.5" (800mm)
Height (H)19.7" (500mm)
Height (Q)98.4" (250mm)
Spindle Stroke14.6" (370mm)
Quill Diameter3.94" (100mm)
Number of Spindle Speeds12
Spindle Speeds (rpm)35-1890
Number of Feeds6
Spindle Feed Rate in/rev. (mm/rev.)0.003"(.07mm)-0.038"(.96mm)
Spindle Drive Motor (2-speed)7.5 hp (5.6 Kw)
Elevating Motor3 hp (2.25 Kw)
Clamping Motor1 hp (.75 Kw)
Coolant Pump Motor1/8 hp (.10 Kw)
Base and Column Height (G)116.5" (2960mm)
Shipping Dimensions (L x W x H)122.2" (3105mm) 55.1" (1400mm) 127.5" (3240mm)
Net Weight13,448 lbs. (6100kg)
Shipping Weight14,550 lbs. (6600kg)
