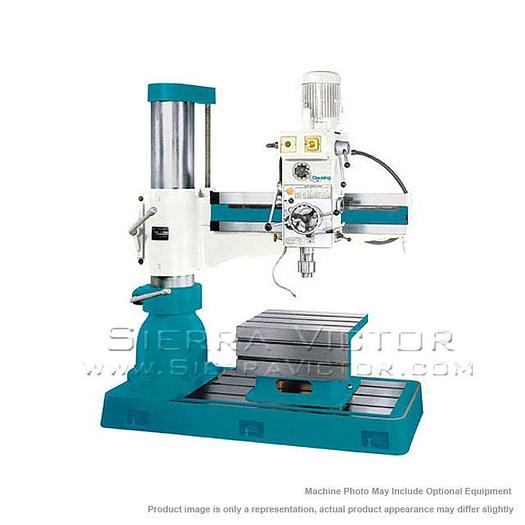

CLAUSING Radial Drill CL1100

CLAUSING Radial Drill CL1100

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer CLAUSING Radial Drill CL1100 ITEM: 43" Radial Drill MANUFACTURER: CLAUSING MODEL: CL1100 The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor Overload protection device The main spindle is balanced by a specially shaped spring Coolant system Low volt and overload protection CSA Electrics Standard Tool kit and manuals PART # ITEM CLS100 Large Tilt Table, 32X28X24 (CLS) CLS101 Small Tilt Table, 20X20X23 (CLS) CLS102 Extra Box Table, 39.3 x 31.5 x 19.6 (1 std on 2000H) CLS102A Extra Box Table, 23.6 x 17.5 x 14.9 (1 std on 720A - 920A) CLS102B Extra Box Table, 24.8 x 20.4 x 16.3 (1 std on 1100,1230H,1250H) CLS102C Extra Box Table, 24.8 x 19.6 x 19.6 (1 std on CLC1600H) CLS102D Extra Box Table, 27.5 x 19.6 x 15.7 (1 std on CL1600H) CLS102E Extra Box Table, 39.3 x 31.5 x 22 (1 std on 2500H) CLS-CE1 CE Electrics w/Spindle Guarding CL720-1230H CLS-CE2 CE Electrics w/Spindle Guarding CLC1250H&1600H CLS-CE3 CE Electrics w/Spindle Guarding CL1600H -2500 CLS-CSA1 CSA\UL Electrics CL720-920 CLS-CSA2 CSA\UL Electrics CL1100-1230H CLS-CSA3 CSA\UL Electrics CLC1250H-1600H CLS-CSA4 CSA\UL Electrics CL1600-2000 CLS-CSA5 CSA\UL Electrics CL2500 CLS-7 7.5Hp Main Spdl Mtr Upgrade CLC1600H (fac inst) CLS-10 10Hp Main Spdl Mtr Upgrade CL1600&2000 (fac inst) CLS-200 Auto Reverse Tapping Feature 4MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options CLS-200A Auto Reverse Tapping Feature 5MT (factory installed) (not available on CLC2500) Cannot use with SPDL guard options

Specifications

ManufacturerCLAUSING
ModelCL1100
ConditionNew
Stock NumberCL1100
Drilling In Cast Iron2.16" (55mm)
Tapping In Steel1" (25mm)
Tapping In Cast Iron1.5" (38mm)
Boring In Steel3.35" (85mm)
Boring In Cast Iron4.72" (120mm)
Minimum (D)11.0" (280mm)
Spindle Head Travel (C)32.3" (820mm)
Minimum (B)18.5" (470mm)
Arm Vertical Travel (A-B)22.4" (570mm)
Arm Rotation (Right & Left)180°
Baseplate Working Surface48" x 29.1"(1219 x 739mm)
Width (K)24.5" (520mm)
Height (H)16.3" (415mm)
Height (Q)7.1"(180mm)
Spindle Stroke9.05" (230mm)
Quill Diameter3.15" (80mm)
Number of Spindle Speeds12
Spindle Speeds (rpm)44-1500
Number of Feeds3
Spindle Feed Rate in/rev. (mm/rev.)0.002"(.05mm), 0.0035"(.09mm), 0.006"(.15mm)
Spindle Drive Motor (2-speed)3 hp (2.25 Kw)
Elevating Motor1 hp (.75 Kw)
Coolant Pump Motor1/8 hp (.10 Kw)
Base and Column Height (G)78.7" (2000mm)
Shipping Dimensions (L x W x H)74.0" (1880mm) 34.0" (864mm) 87" (2210mm)
Net Weight3,968 lbs. (1800kg)
Shipping Weight4,299 lbs. (1950kg)
