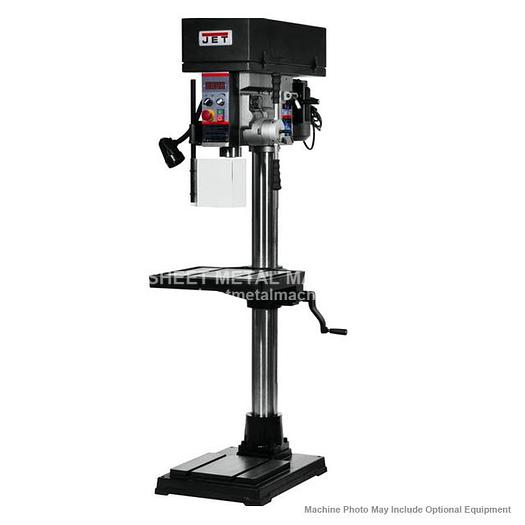

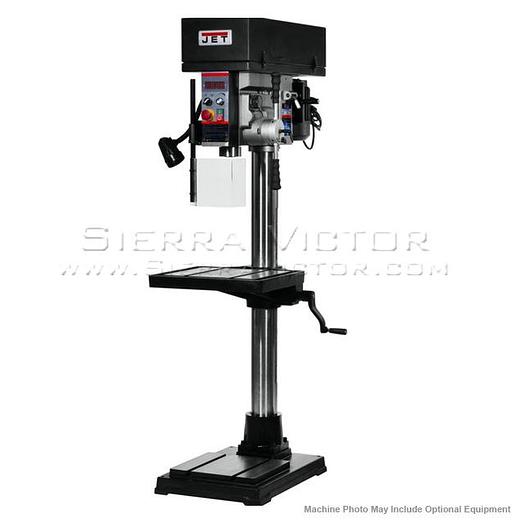

Please note: many products ship straight from manufacturer JET JDPE-20EVS-PDF 20" EVS Drill Press with Power Downfeed 354250 Heavy steel column prevents failures by increasing rigidity and stiffnesss versus cast iron columns Casted head for more accuracy and rigidity Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support Large precision ground t-slot production table CSA/US: Following strict guidelines and electrical requirements, this JET EVS Drill Press is CSA/US certified LED machine lamp delivers extra light for more precise drilling Spindle guard protects user from flying debris Emergency stop allows for immediate shut off Various spindle speeds from 50-2000 RPM's Front mounted LED spindle RPM readout 3-Speed power downfeed High torque at all speeds both forward and reverse Large hand grips designed with the user in mind Speed range change pulley Forward and reverse switch for instant tapping mode

STANDARD EQUIPMENT: Tapping function Spindle power downfeed system Electronic variable speed Spindle guard LED lamp

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock Number354250
Drilling Capacity (in.) casting1-1/4
Drilling Capacity (in.) Mild Steel1-1/8
Tapping Capacity (in.)5/8
Swing (in.)19-11/16
Max Distance Spindle to Table (in.)32-15/64
Maximum Distance Spindle To Base (in.)46-21/64
Spindle TaperMT-3
Spindle Travel Manual (in.)5
Spindle Auto Travel (in.)4-1/4
Quill Diameter (in.)2-1/16
Quill Down Feed Rate (number & RPM's)No.3/ 0.005"/0.007"/0.010"
Column Diameter (in.)4
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)Lo:50-390, Hi 270-2000
Table Size (in.)16-1/2 x 18-1/2
TableT-slots, Number and Size (in.)2 Slots for 5/8 bolts
Base Dimensions (in.)17-17/64 x 25-1/2
Base Work Table (in.)14-3/16 x 13
Base T-slots, Number and Size (in.)2 Slots for 5/8 bolts
Motor1-1/2HP 230V 3PH
Inverter type / power source2HP/115V/1PH
Overall Dimensions (l x w x h/in.)32-3/5 x 22-2/3 x 70-25/64
Net Weight (lbs.)477
Gross Weight (lbs)566
